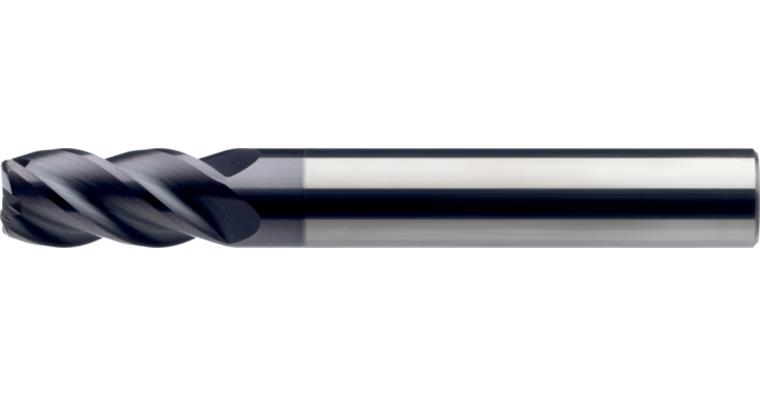

ATORN SC torus milling cutter, standard diameter 8.0 x 20 x 64 mm r1.0 T=4 RT52

ATORN SC torus milling cutter, standard diameter 8.0 x 20 x 64 mm r1.0 T=4 RT52

ATORN SC torus milling cutter, standard diameter 8.0 x 20 x 64 mm r1.0 T=4 RT52
Item no: 1016816 112

Online price:

Still in stock: 3

Application
Torus milling cutter for universal machining of materials up to 52 HRC, e.g. for countersinking and mould making.

Execution
  • solid carbide ultra-fine grain
  • cutting edge finish
  • HA shank in accordance with DIN 6535
  • with clearance
  • type N
  • 3° chip angle
  • RockTec 52 coated
  • radius tolerance = 0/-0.010 mm

Advantage
  • optimum chip removal and temperature resistance
  • maximum service life thanks to RockTec 52 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 52
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 20 mm
Length: 64 mm
Shank diameter: 8 mm
Edge radius: 1 mm
fz steel 1300: 0,08 mm

ATORN-No.: 11860218

EAN no.: 4050293195576

Product Datasheet
