ATORN solid carbide roughing cutter Z3 HB shaft diameter 8x21x63 mm

ATORN solid carbide roughing cutter Z3 HB shaft diameter 8x21x63 mm

ATORN solid carbide roughing cutter Z3 HB shaft diameter 8x21x63 mm
Item no: 1016898 108

Online price:

Available in 6-8 working days.

Application
Suitable for rough cutting with outstanding material removal rates on NF metals.

Execution
  • Solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Clearance
  • Polish sanding

Advantage
  • Ultra-smooth coating
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: WF
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 21 mm
Clearance length: 26 mm
Length: 63 mm
Edge protection chamfer length: 0,25 mm
Clearance diameter: 7,8 mm
Shank diameter: 8 mm
fz aluminium: 0,106 mm

ATORN-No.: 12041002

EAN no.: 4050293716603

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 352 F third tap HSS M10
  •
    Hand tap DIN 352 F third tap HSS M27
  •
    Hand tap DIN 352 F third tap HSS M30
  •
    Machine tap DIN 352 straight HSS-E short M 10
    17,18 €
  • Through hole screw tap G DIN 5156 shape B 2.5xD HSS-E 1/4 inch
  •
    ATORN SC rghng. ctr. D 10.0 x 22 x 32 x 72mm, HB shaft 4 cutting edges, ULTRA MS
  •
    ATORN solid carbide roughing cutter Z3 HB shaft diameter 6x14x57 mm
  •
    ATORN toolholder H for round lathe tools type EH 32x100
    175,68 €
  • ATORN toolholder H for round lathe tools type CH 40x160
  •

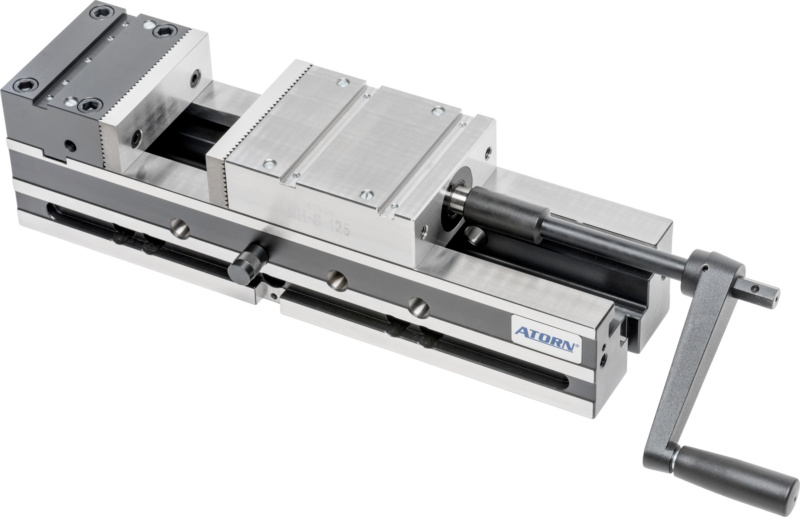

    ATORN machine vice MH-S B125 mm bed length 470 mm
  •
    Wheel brushes COMBITWIST® with hole dia. 115 mm, steel wire 0.5 mm
    22,84 €

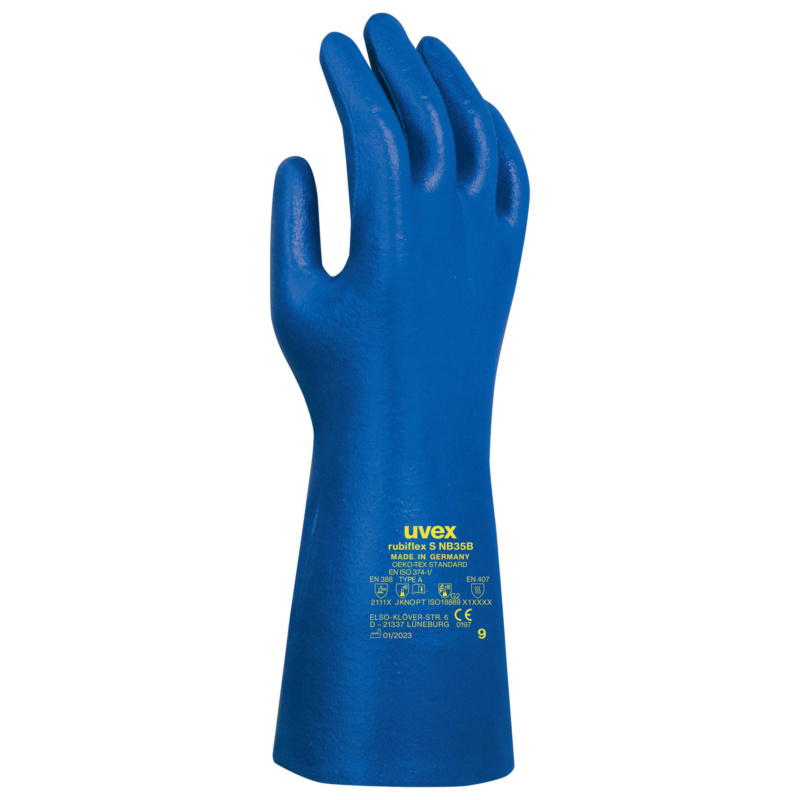

  • Chemical protective glove Rubiflex S NB35B PU=10 pairs size 10
