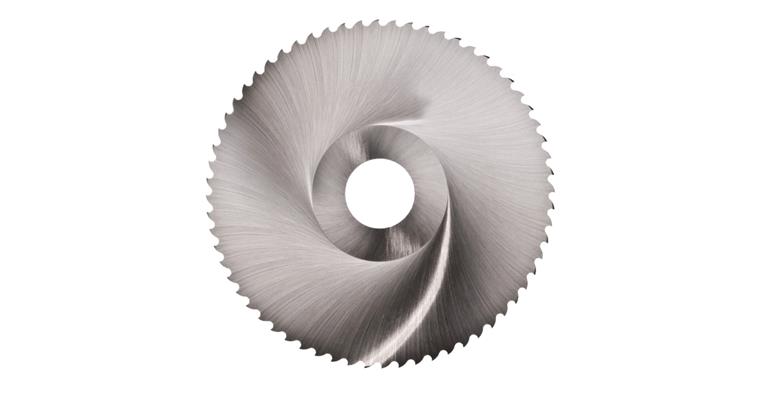

Metal circular saw blade DIN 1838 C 64 teeth high-perf. toothed HSS 160x2.0 mm

Metal circular saw blade DIN 1838 C 64 teeth high-perf. toothed HSS 160x2.0 mm

Metal circular saw blade DIN 1838 C 64 teeth high-perf. toothed HSS 160x2.0 mm
Item no: 1017008 149

Online price:

Still in stock: 9

Application
For medium and deep cuts in thicker workpieces (3 mm and above). Particularly suitable for materials with low to medium strength.

Execution
  • Tooth shape, DIN 1840 C hollow ground
  • High-performance toothing (HZ) with pre- and post-cutting edge
  • Depending on the tooth pitch, the pre-cutters are up to 0.3 mm higher than the post-cutters and thus only suitable for continuous cuts, otherwise a step is formed at the bottom of the cut by the pre-cutting edge

Advantage
Very high chip performance due to the cutting tooth shape

Notes
For saw blade holders see art. no. 1021636.

Brand: LIZZARD
Tooth shape: C
Cutting material: HSS
Thickness of cutting edge (T): 2,5 mm
Tolerance of cutting edge diameter: js15
Tolerance of cutting edge thickness: js11
Tolerance of hole diameter: H7
Bore diameter (B): 32 mm
Number of teeth (Z): 64 PCS
DIN: 1838
Saw blade diameter (D): 160 mm

EAN no.: 4024496041046

Product Datasheet
