ATORN metal circ saw blade, SC, coarse tooth, 100 mm x 1.3 mm x 22 mm, B T=48

ATORN metal circ saw blade, SC, coarse tooth, 100 mm x 1.3 mm x 22 mm, B T=48

ATORN metal circ saw blade, SC, coarse tooth, 100 mm x 1.3 mm x 22 mm, B T=48
Item no: 1017030 736

Online price:

Still in stock: 1

Application
For making saw cuts in large cross-sections and for medium to deep cutting depths in the material groups of steel, (stainless steel), cast iron and (non-ferrous metals).

Execution
precision-ground metal circular saw blade with tooth shape B, fine-toothed, hollow ground on side

Advantage
  • innovative cutting geometry with large chip space ensures chip removal and universal application
  • high-quality cutting material for very high service life requirements
  • universal use in numerous applications


Brand: ATORN
Tooth shape: B
Cutting material: SC
Thickness of cutting edge (T): 1,3 mm
Tolerance of cutting edge diameter: j15
Tolerance of cutting edge thickness: j11
Tolerance of hole diameter: H6
Cutting edge diameter (D): 100 mm
Bore diameter (B): 22 mm
Number of teeth (Z): 48 PCS
DIN: 1838
Form: B

ATORN-No.: 12310548

EAN no.: 4050293446067

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN high-perf. drill, SC TiAlN, HPC 16xD 12.0 mm x 12 mm x 265 mm HA internal
  •
    ATORN high-perf. drill, SC TiAlN, HPC 25xD 9.8 mm x 10 mm x 310 mm HA internal
    560,00 €
  • Hexagonal die, right-cutting DIN 382 HSS M 18
    93,33 €
  • ATORN metal circ saw blade, SC, coarse tooth, 100 mm x 1.7 mm x 22 mm, B T=48
  •
    ATORN metal circ saw blade, SC, coarse tooth, 125 mm x 1.9 mm x 22 mm, B T=64
  •
    ATORN metal circ saw blade, SC, finely toothed, 30 mm x 0.15 mm x 8 mm A T=100
  •
    ATORN metal circ saw blade, SC, finely toothed, 40 mm x 0.2 mm x 10 mm A T=128
    32,38 €
  • ATORN metal circ saw blade, SC, finely toothed, 80 mm x 1.1 mm x 22 mm A T=100
    99,18 €
  • ATORN metal circ saw blade, SC, finely toothed, 80 mm x 1.4 mm x 22 mm A T=100
    109,30 €
  • ATORN metal circ saw blade, SC, finely toothed, 80 mm x 1.5 mm x 22 mm A T=100
  •

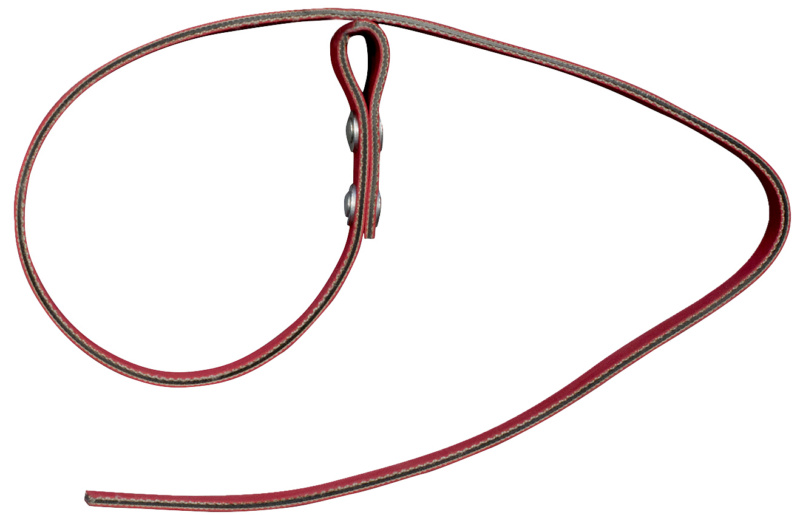

    Ersatzgurt für Gurtrohrzange Art.-Nr. 61044 201 L=1000 mm B=25 mm
