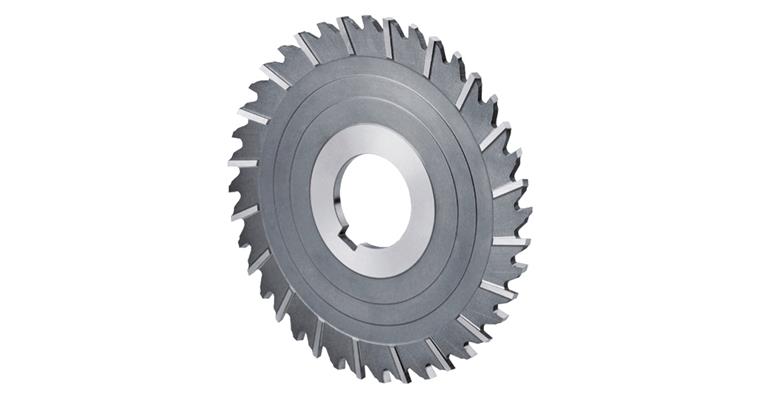

Narrow disc cutter (side/face milling cutter) DIN 1834 A type N HSS-E 125x10 mm

Narrow disc cutter (side/face milling cutter) DIN 1834 A type N HSS-E 125x10 mm

Narrow disc cutter (side/face milling cutter) DIN 1834 A type N HSS-E 125x10 mm
Item no: 1017085 227

Online price:

Still in stock: 6

Application
For precise cuts. For materials up to approx. 1000 N/mm² strength.

Execution
  • Cuts on three sides
  • Cross-toothed
  • With longitudinal groove according to DIN 138


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter (d1 js16): 125 mm
Bore diameter (d2 h7): 32 mm
Width of cutting edge (b k11): 10 mm
Number of cutting edges (Z): 32 PCS
Coolant supply: External
Tolerance of cutting edge diameter: js16
Tolerance of cutting edge width: k11
Tolerance of hole diameter: H7

EAN no.: 4024496042173

Product Datasheet
