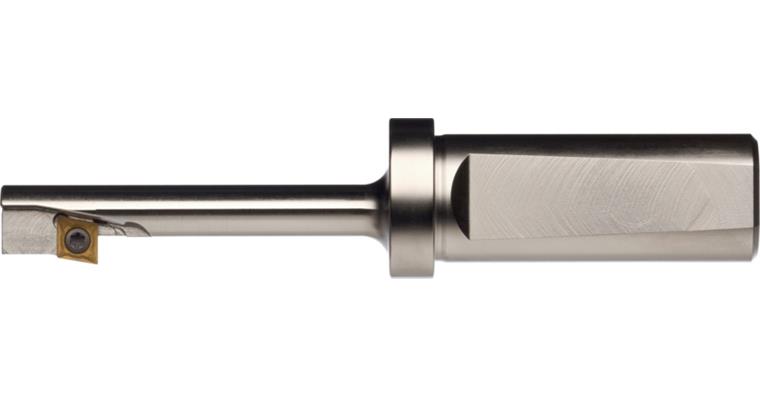

ATORN reversible tips, reverse boring bar, single cutter, CC..06 24 mm, HE

ATORN reversible tips, reverse boring bar, single cutter, CC..06 24 mm, HE

ATORN reversible tips, reverse boring bar, single cutter, CC..06 24 mm, HE
Item no: 1017570 103

Online price:

Available in 4-6 working days.

Application
180° back countersinks with CC.. and CP.. indexable inserts in the diameter range of 15.00-76.00 mm, in the steel, stainless steel, non-ferrous metal, casting material and special alloy material groups for use in individual part and series production.

Execution
backing material made from high-grade steel with clamping surface as per DIN 1835E

Advantage
  • Standard CC.. and CP.. indexable inserts can be used, which optimises procurement and minimises tool costs
  • precisely fitting inserts ensure optimum machining results even under difficult conditions
  • nickel-plated tool for high corrosion-resistance


Brand: ATORN
Number of cutting edges: 1 PCS
Coolant supply: Internal
Tool holding device: HE parallel shank
Countersink diameter: 24 mm
Min. bore diameter (d min.): 15 mm
Length (L): 122 mm
Cantilever length (L1): 72 mm
Reverse machining clearance (L2): 57 mm
Max. insert depth (L3): 50 mm
Shank diameter (d): 20 mm
Collar diameter (D1): 25 mm
Travel dimension (e): 4,75 mm
Suitable for indexable inserts: CC..06

ATORN-No.: 11113624

EAN no.: 4050293178210

Product Datasheet
