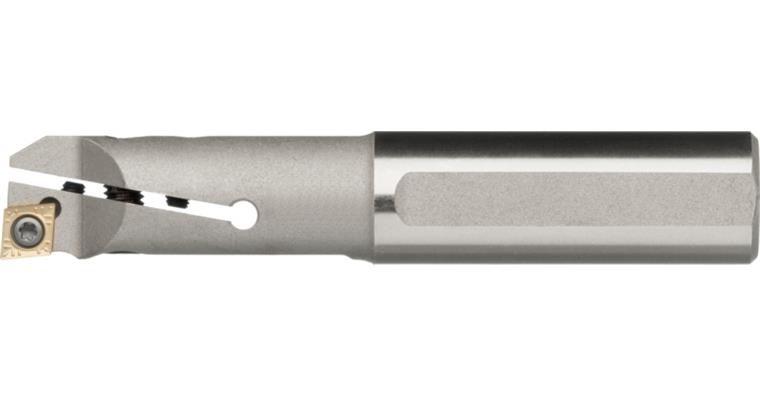

ATORN reversible tip fine-boring rod, single cutter, adjustable CC..09 40-45 mm

ATORN reversible tip fine-boring rod, single cutter, adjustable CC..09 40-45 mm

ATORN reversible tip fine-boring rod, single cutter, adjustable CC..09 40-45 mm
Item no: 1017578 108

Online price:

Available in 4-6 working days.

Application
boring and drill out with CC.. indexable inserts in the diameter range from 10.00–50.00 mm in the material groups steel, stainless steel, non-ferrous metals, cast materials and special alloys.

Execution
Support material made from high-grade steel with adjusting range and clamping surface in line with DIN 1835B

Advantage
  • low cost boring and reaming tool with large adjustment range
  • standard CC.. indexable inserts can be used, thereby optimising procurement and minimising tool costs
  • nickel-plated tool for high corrosion-resistance


Brand: ATORN
Number of cutting edges: 1 PCS
Tool holding device: HB parallel shank
Min./max. cutting edge diameter: 40-45 mm
Cantilever length (L2): 120 mm
Shaft length (L3): 70 mm
Length (L1): 190 mm
Shank diameter (d): 32 mm
Suitable for indexable inserts: CC..09

ATORN-No.: 11119940

EAN no.: 4050293345674

Product Datasheet
