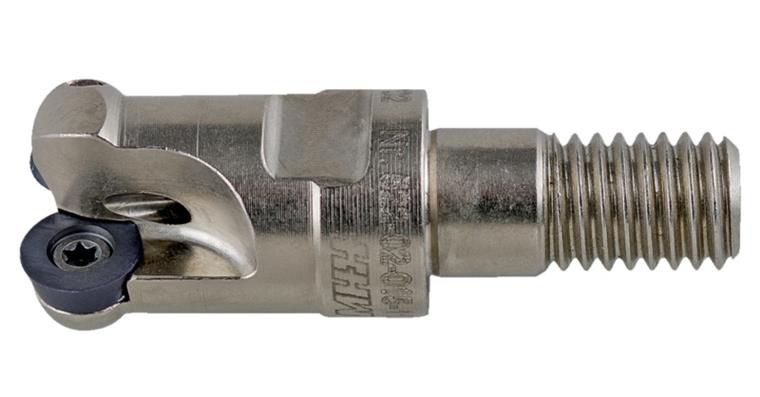

Copy milling cutter w. thread cutting edge dia. 32mm overall L 42 mm f. RDHX 0702

Copy milling cutter w. thread cutting edge dia. 32mm overall L 42 mm f. RDHX 0702

Copy milling cutter w. thread cutting edge dia. 32mm overall L 42 mm f. RDHX 0702
Item no: 1017613 113

Online price:

Available in 6-8 working days.

Application
For face and copy milling with high rotation speeds and feed rates. For toolmaking and mould making.

Execution
  • Nickel-plated milling cutter body in hardened special steel
  • With internal cooling
  • Robust design for smooth running

Advantage
High concentricity and axial runout precision


Brand: HHW
Max. cutting edge diameter (DCX): 32 mm
Thread dimension (TDZ): M12
Number of cutting edges: 5 PCS
Suitable for indexable inserts: RD.. 0702..
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Screw-in thread

EAN no.: 4024496043422
