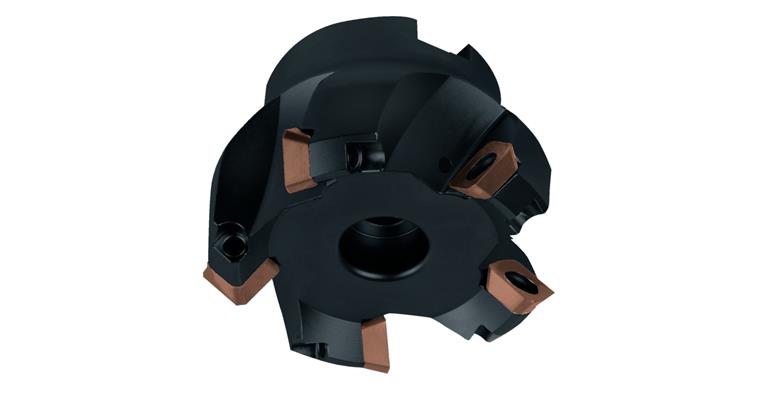

LIZZARD Planfräser 45° 80x27mm für 6 x SE.. 1204

LIZZARD Planfräser 45° 80x27mm für 6 x SE.. 1204

LIZZARD Planfräser 45° 80x27mm für 6 x SE.. 1204
Item no: 1017724 102

Online price:

Still in stock: 1

Application
For general face and chamfer milling

Execution
  • Face milling cutter 45° 50x22 mm for 4 x SE.. 1204
  • Soft cutting owing to the positive installation position of the indexable insert
  • Stable milling behaviour
  • Axial runout < 0.03 mm
  • Concentricity < 0.03 mm

Delivery
1x holder incl. indexable insert screw, without inserts


Brand: LIZZARD
Min. cutting edge diameter (D): 80 mm
Max. cutting edge diameter (De): 93 mm
Length (H): 50 mm
Bore diameter (d): 27 mm
max. ap (P): 6 mm
Number of cutting edges: 6 PCS
Suitable for indexable inserts: SE.. 1204..
Coolant supply: Internal
Surface: Burnished

EAN no.: 4024496173525

Product Datasheet
