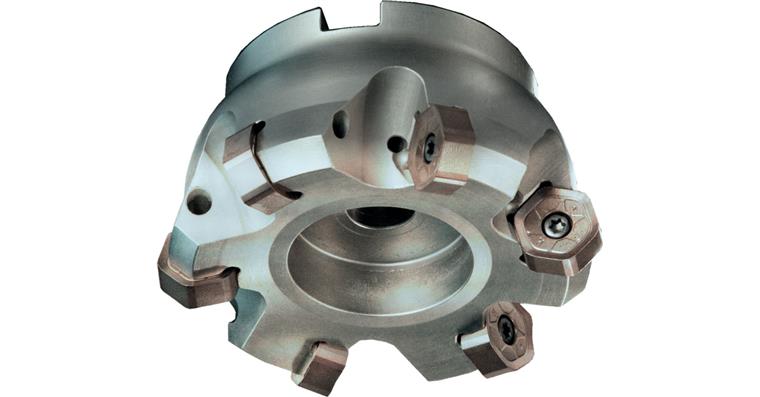

Index. ins face milling cutter 45° HNGJ diameter 80 mm 6 teeth

Index. ins face milling cutter 45° HNGJ diameter 80 mm 6 teeth

Index. ins face milling cutter 45° HNGJ diameter 80 mm 6 teeth
Item no: 1017739 103

Online price:

Available in 6-8 working days.

Application
Indexable insert tool for roughing and for medium machining. For face milling, chamfering, oblique plunge milling.

Execution
  • Uneven tooth pitch for smooth running
  • New material and hardening technologies for maximum tool accuracy
  • Special surface treatment for optimum corrosion resistance and longer service life

Advantage
Favourable cutting costs due to the 12-edged indexable insert


Brand: LIZZARD
Min. cutting edge diameter (D): 80 mm
Max. cutting edge diameter (D1 max): 91,7 mm
Length (L1): 50 mm
Bore diameter (d): 27 mm
Number of cutting edges: 6 PCS
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Chrome plated
Tool holding device: Location bore

EAN no.: 4024496044184

Product Datasheet
