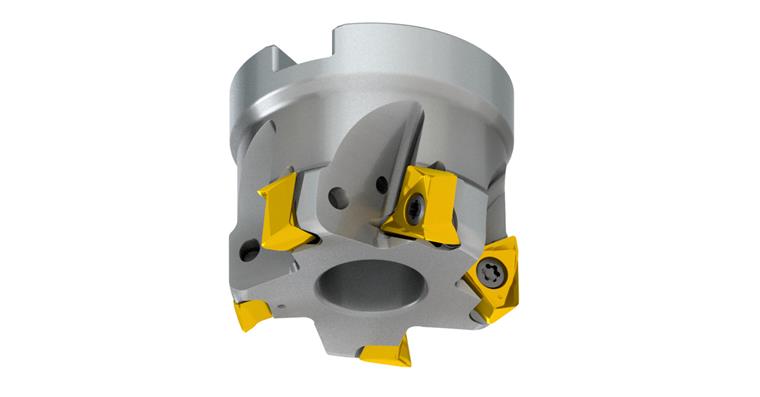

Fc. shl. mill. cut. 160C10R-S90TN16-C TNGX 1606.. dia.160 mm w/ dia.40 mm h. T10

Fc. shl. mill. cut. 160C10R-S90TN16-C TNGX 1606.. dia.160 mm w/ dia.40 mm h. T10

Fc. shl. mill. cut. 160C10R-S90TN16-C TNGX 1606.. dia.160 mm w/ dia.40 mm h. T10
Item no: 1017747 328

Online price:

Available for immediate delivery

Execution
  • 90° shoulder milling cutter with internal cooling
  • With location hole

Advantage
  • Body surface-treated for a longer service life
  • Suitable for face milling, flat shoulder milling, plunge milling, ramping, progressive plunge milling, interpolation and flat groove milling


Brand: DORMER PRAMET
Cutting edge diameter (DC): 160 mm
Number of cutting edges: 10 PCS
Length (LF): 63 mm
Bore diameter (DCON MS): 40 mm
Clearance (KWW): 16,4 mm
Clearance 2 (KWD): 9,2 mm
Bore hole (DCCB): 66,7 mm
Suitable for indexable inserts: TN.. 1606..
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Location bore
Coupon code: DORMER1017747328

Manufacturer part no.: 8020913

EAN no.: 3603603844599

Product Datasheet
