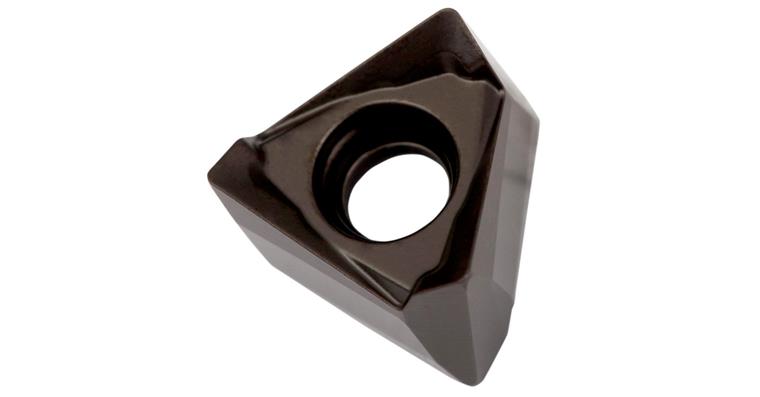

Indexable milling insert TNGX 100404SR-F:8215

Indexable milling insert TNGX 100404SR-F:8215

Indexable milling insert TNGX 100404SR-F:8215
Item no: 1017747 504

Online price:

Available for immediate delivery

Application
- Suitable for milling system TNGX 1004..
- For finish machining

Execution
Geometry with highly positive design

Advantage
Machining a wide range of materials


Brand: DORMER PRAMET
Material to be processed: Steel | Stainless steel | Cast metal
ISO name: TNGX 100404SR-F
Supply type: Smoothing
Surface: Coated
Cutting material: SC
Inner circle diameter (IC): 6,0 mm
Knife edge length (L): 10,39 mm
Mounting bore diameter (D1): 2,8 mm
Corner radius (RE): 0,4 mm
Thickness of indexable insert (S): 4,69 mm
Carbide type: 8215
Coating: PVD
Materials group: P (primary application) | M (secondary application) | K (secondary application)
Carbide type ISO: P10 | P20 | M10 | M20 | K10 | K25
Machining conditions for indexable insert: Good
Min./max. Vc in steel: 185-375 m/min
min./max. ap steel: 0.1-5.0 mm
min./max. fz steel: 0.03-0.11 mm/U
Min./max. Vc in stainless steel: 110-225 m/min
min./max. ap stainless steel: 0.1-5.0 mm
min./max. fz stainless steel.: 0.03-0.1 mm/U
Min./max. Vc in cast iron: 175-355 m/min
min./max. ap cast: 0.1-5.0 mm
min./max. fz cast: 0.03-0.11 mm/U
Number of pieces per packet: 10

Manufacturer part no.: 7178552

EAN no.: 3603603173392

Product Datasheet Datasheet cutting values Technical Datasheet
