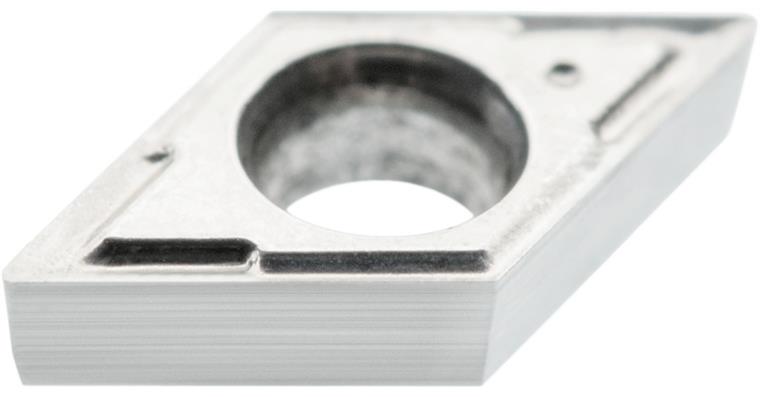

ATORN carbide indexable insert DCGT 04T002 FN-ALU K15

ATORN carbide indexable insert DCGT 04T002 FN-ALU K15

ATORN carbide indexable insert DCGT 04T002 FN-ALU K15
Item no: 1018477 201

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with a wide infeed range in favourable cutting conditions

Execution
ground cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 04
Corner radius of indexable insert ISO: 02
Coating: PVD
Carbide type area ISO: N
Carbide type ISO: N15
Carbide type: HC6315
min./max. ap: 0.1-1.5 mm
f min./max.: 0.04-0.12 mm/U
f min.: 0,04 mm/r
max. f: 0,12 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN
Min./max. Vc in non-ferrous metals: 160-280 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12232486

EAN no.: 4050293562286

Product Datasheet
