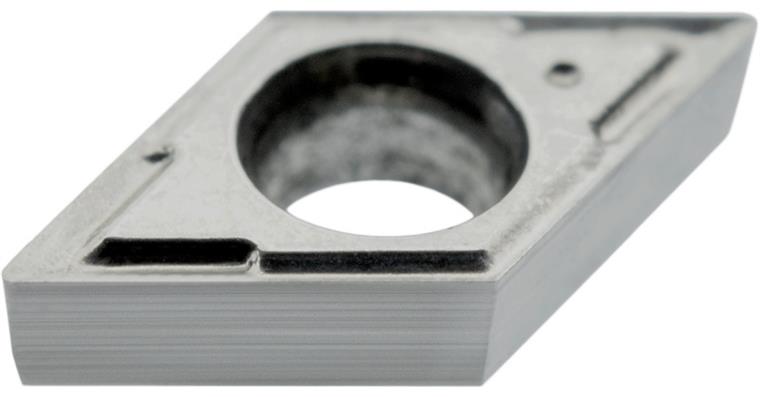

ATORN carbide indexable insert DCGT 04T002 EN-PM1 K400

ATORN carbide indexable insert DCGT 04T002 EN-PM1 K400

ATORN carbide indexable insert DCGT 04T002 EN-PM1 K400
Item no: 1018477 202

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with low cutting depths in moderate cutting conditions

Execution
ground cemented carbide indexable insert

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 04
Corner radius of indexable insert ISO: 02
Coating: CVD
Carbide type area ISO: P
Carbide type ISO: P25
Carbide type: HC7625
min./max. ap: 0.1-1.5 mm
f min./max.: 0.05-0.10 mm/U
f min.: 0,05 mm/r
max. f: 0,10 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 110-220 m/min
Min./max. Vc in cast iron: 120-190 m/min
Min./max. Vc in stainless steel: 60-120 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12232487

EAN no.: 4050293562293

Product Datasheet
