ATORN boring bar, positive, with internal cooling A40T SVQCL 16

ATORN boring bar, positive, with internal cooling A40T SVQCL 16

ATORN boring bar, positive, with internal cooling A40T SVQCL 16
Item no: 1018516 303

Online price:

Available in 4-6 working days.

Application
For longitudinal and copy turning with VC indexable insert 35°

Execution

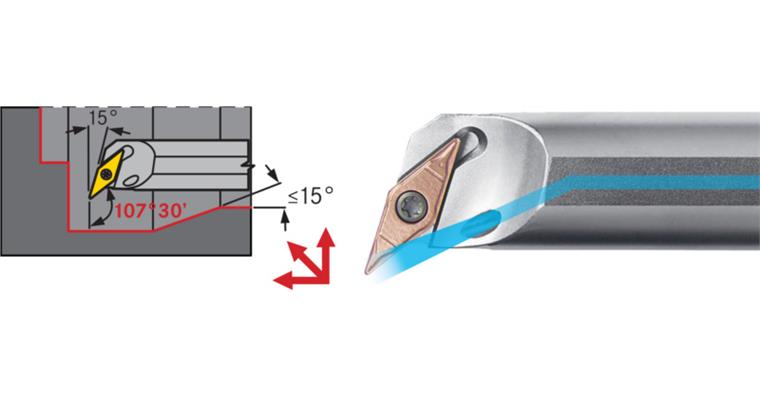

Precision-made boring bar, steel, with internal cooling, type V, attack angle 107.5°, tip angle 35°, clearance angle 7°

Advantage
  • very slim geometry, optimised for contour turning work
  • positive body geometry ensures low cutting forces


Brand: ATORN
ISO name: A40T SVQC R/L 16
Min. bore diameter (D min.): 49 mm
Shank diameter (d): 40 mm
Clearance length (l2): 40 mm
Length (l1): 300 mm
Clamping surface height (h): 38 mm
Suitable for indexable inserts (ISO): VC.. 1604..
Tool design: Left
DIN: 8024

ATORN-No.: 12232503

EAN no.: 4050293562453

Product Datasheet
