ATORN PDUN boring bar w. clamping surface, steel, neg., left, A 32 S PDUN R/L 15

ATORN PDUN boring bar w. clamping surface, steel, neg., left, A 32 S PDUN R/L 15

ATORN PDUN boring bar w. clamping surface, steel, neg., left, A 32 S PDUN R/L 15
Item no: 1018526 511

Online price:

Availability on demand

Application
For copy turning and longitudinal turning using DN 55° indexable insert

Execution

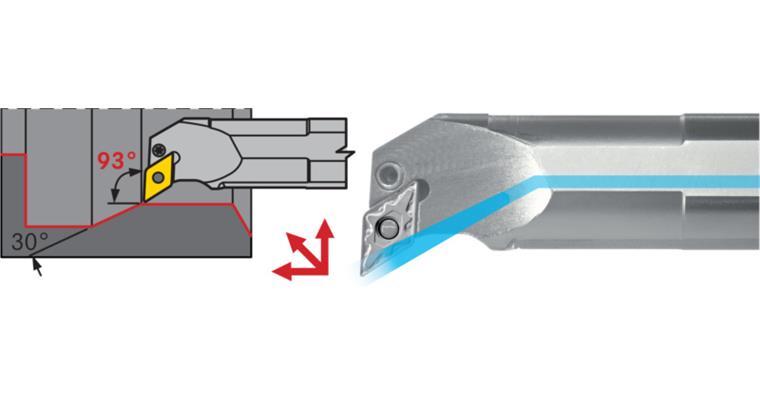

Precision-manufactured boring bar, steel, with clamping surface, internal cooling, shape D, 93° pitch angle, 55° tip angle, 0° clearance angle

Advantage
  • very slim geometry, optimised for contour turning work
  • negative body geometry ensures good stability and absorption of force for large cutting depths


Brand: ATORN
ISO name: A 32 S PDUN R/L 15
Min. bore diameter (D min.): 40 mm
Shank diameter (d): 32 mm
Clearance length (l2): 50 mm
Length (l1): 250 mm
Clamping surface height (h): 30 mm
Programming size (f): 22 mm
Cutting edge height (h1): 15 mm
Suitable for indexable inserts (ISO): DN.. 1506..
Tool design: Left
DIN: 8024

ATORN-No.: 11220198

EAN no.: 4050293348224

Product Datasheet
