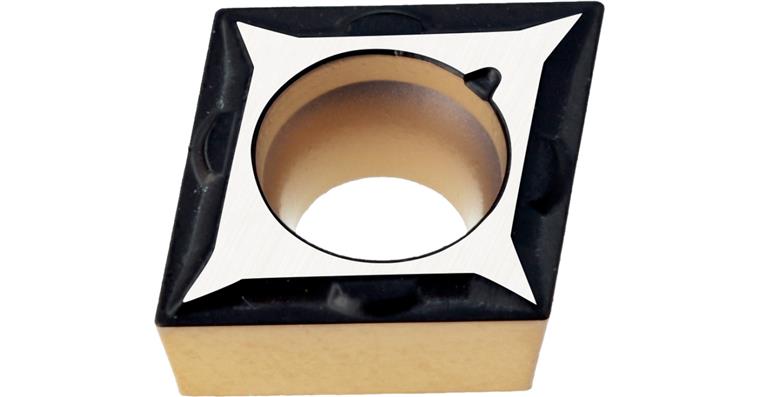

ATORN indexable insert CCMT 09T302-FP1 HC7625

Versions

Item no: 1018551 800

Online price:

Catalogue price: You save:

Only while stocks last: 30

Replacement article

Min. order quantity: 10

Advantage

perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
very positive chip breaker, ensures ideal chip breaking with small cutting depths

Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 02
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: HC7625
ISO-Code Rotating: CCMT 09T302
Material to be processed: Steel | Cast iron
min./max. ap: 0.25-3 mm
f min./max.: 0.05-0.45 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,05 mm/r
max. f: 0,45 mm/r
max. ap: 3 mm
min. ap: 0,25 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 115-270 m/min
Min./max. Vc in cast iron: 135-370 m/min

ATORN-No.: 12350079

EAN no.: 4050293662023

Product Datasheet Datasheet cutting values
