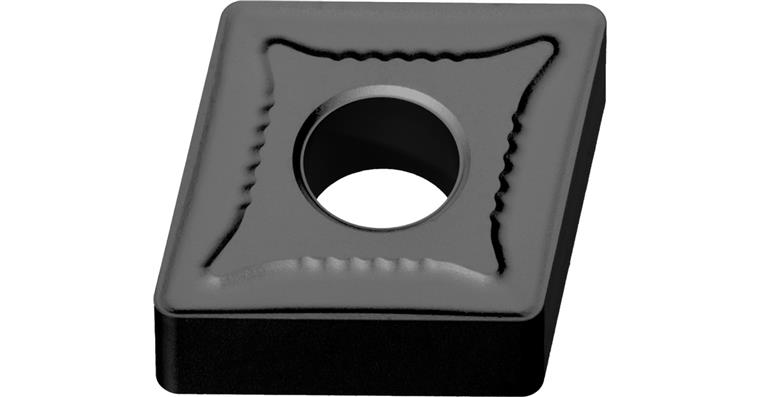

ATORN cemented carbide indexable insert CNMG120408-RM HC7820

ATORN cemented carbide indexable insert CNMG120408-RM HC7820

ATORN cemented carbide indexable insert CNMG120408-RM HC7820
Item no: 1018555 115

Online price:

Available for immediate delivery

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7820
ISO-Code Rotating: CNMG 120408
Material to be processed: Stainless steel | Steel | Special alloy
min./max. ap: 1.2-5.0 mm
f min./max.: 0.22-0.40 mm/U
Materials group: S (primary application) | P (primary application) | M (primary application)
f min.: 0,22 mm/r
max. f: 0,40 mm/r
max. ap: 5,0 mm
min. ap: 1,2 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM
Min./max. Vc in steel: 50-140 m/min
Min./max. Vc in stainless steel: 80-220 m/min
Min./max. Vc in special alloys: 40-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10875135

EAN no.: 4050293561500

Product Datasheet
