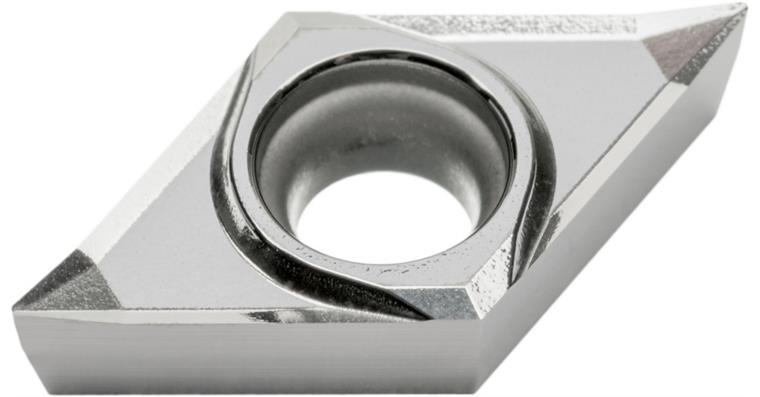

ATORN indexable insert, positive, DCGT 11T302-MN HW6310

ATORN indexable insert, positive, DCGT 11T302-MN HW6310

ATORN indexable insert, positive, DCGT 11T302-MN HW6310
Item no: 1018564 303

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with a wide infeed range in favourable cutting conditions

Execution
ground cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades
  • extremely sharply ground cutting edges ensure ideal cutting behaviour and finish quality


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 02
Coating: 0 - not applicable
Carbide type area ISO: N
Machining conditions for indexable insert: Good
Carbide type ISO: N10
Carbide type: HW6310
ISO-Code Rotating: DCGT 11T302
Material to be processed: Non-ferrous metal
min./max. ap: 0.2-2.0 mm
f min./max.: 0.04-0.12 mm/U
Materials group: N (primary application)
f min.: 0,04 mm/r
max. f: 0,12 mm/r
max. ap: 2,0 mm
min. ap: 0,2 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN
Min./max. Vc in non-ferrous metals: 130-1300 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870302

EAN no.: 4050293079920

Product Datasheet
