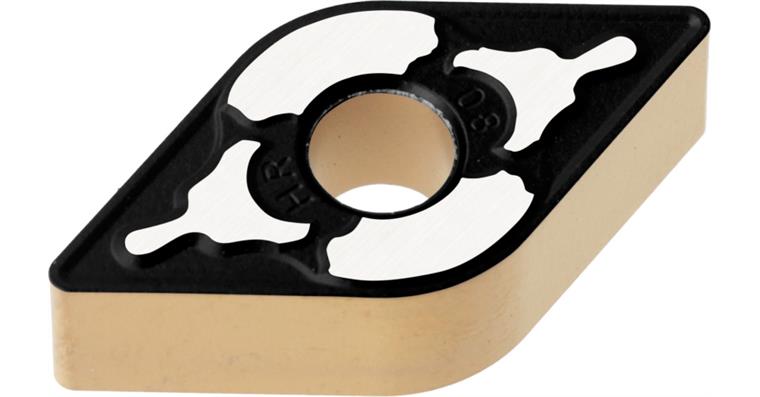

ATORN indexable insert DNMG 150408-RP4 HC7625

Versions

Item no: 1018566 848

Online price:

Catalogue price: You save:

sold out

Replacement article

Min. order quantity: 10

Advantage

perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions

Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: HC7625
ISO-Code Rotating: DNMG 150408
Material to be processed: Steel | Cast iron
min./max. ap: 1.00-6.00 mm
f min./max.: 0.10-0.45 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,10 mm/r
max. f: 0,45 mm/r
max. ap: 6,00 mm
min. ap: 1,00 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP4
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350145

EAN no.: 4050293662689

Product Datasheet Datasheet cutting values
