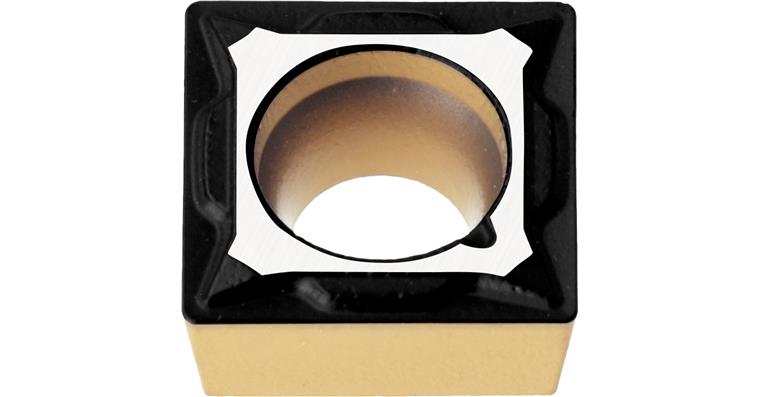

ATORN indexable insert SCMT 09T304-FP1 ACP15T-1

ATORN indexable insert SCMT 09T304-FP1 ACP15T-1

ATORN indexable insert SCMT 09T304-FP1 ACP15T-1
Item no: 1018581 300

Online price:

Available in 6-8 working days.

Advantage
  • very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: SCMT 09T304
Material to be processed: Steel | Cast iron
min./max. ap: 0.11-2 mm
f min./max.: 0.06-0.3 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,06 mm/r
max. f: 0,3 mm/r
max. ap: 2 mm
min. ap: 0,11 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 130-295 m/min
Min./max. Vc in cast iron: 150-395 m/min

ATORN-No.: 12350854

EAN no.: 4066107044701

Product Datasheet Datasheet cutting values
