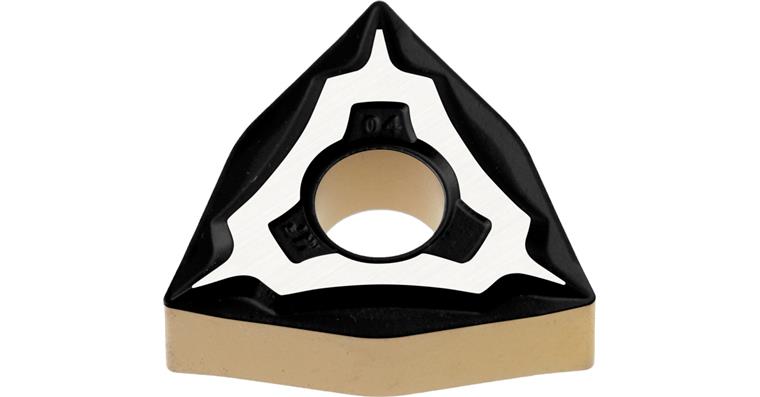

ATORN indexable insert WNMG 080404-FP1 ACP25T-1

ATORN indexable insert WNMG 080404-FP1 ACP25T-1

ATORN indexable insert WNMG 080404-FP1 ACP25T-1
Item no: 1018581 611

Online price:

Available in 6-8 working days.

Advantage
  • perfect combination of toughness and wear resistance, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1
ISO-Code Rotating: WNMG 080404
Material to be processed: Steel | Cast iron
min./max. ap: 0.50-2.50 mm
f min./max.: 0.08-0.45 mm/U
Materials group: K (secondary application) | P (primary application)
f min.: 0,08 mm/r
max. f: 0,45 mm/r
max. ap: 2,50 mm
min. ap: 0,50 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12351023

EAN no.: 4066107046392

Product Datasheet Datasheet cutting values
