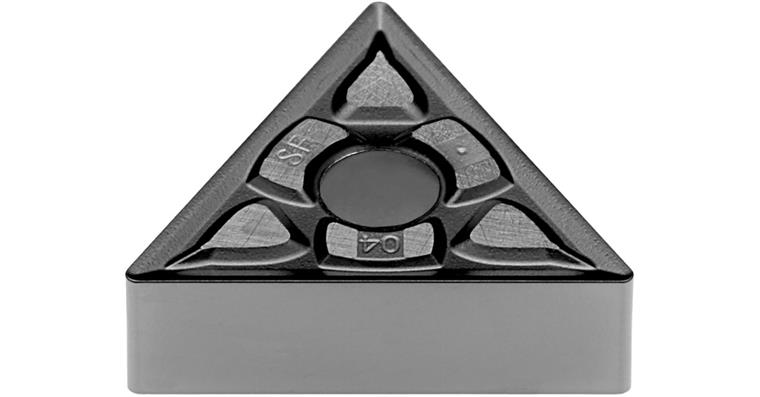

ATORN indexable insert TNMG 160408-FM1 ACM25T-1

ATORN indexable insert TNMG 160408-FM1 ACM25T-1

ATORN indexable insert TNMG 160408-FM1 ACM25T-1
Item no: 1018598 204

Online price:

Available for immediate delivery

Notes
Indexable insert TNMG 160404-FM1 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: ACM25T-1
ISO-Code Rotating: TNMG 160408
min./max. ap: 0.6-3 mm
f min./max.: 0.1-0.55 mm/U
f min.: 0,1 mm/r
max. f: 0,55 mm/r
max. ap: 3 mm
min. ap: 0,6 mm
Chip breaker code: FM1
Min./max. Vc in stainless steel: 110-240 m/min

ATORN-No.: 12350605

EAN no.: 4066107027247

Product Datasheet Datasheet cutting values
