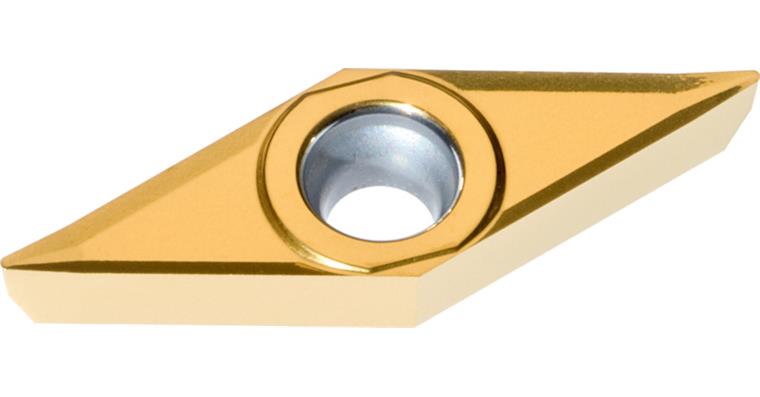

ATORN indexable insert, positive, VCGT 160408-MN HC6310

ATORN indexable insert, positive, VCGT 160408-MN HC6310

ATORN indexable insert, positive, VCGT 160408-MN HC6310
Item no: 1018611 305

Online price:

Only while stocks last: 10

Application
For longitudinal turning and copy turning with a wide infeed range in favourable cutting conditions

Execution
Ground cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades
  • Extremely sharp ground cutters ensure ideal cutting behaviour and surface quality


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: N
Machining conditions for indexable insert: Good
Carbide type ISO: N10
Carbide type: HC6310
ISO-Code Rotating: VCGT 160408
Material to be processed: Non-ferrous metal
min./max. ap: 0.5-3 mm
f min./max.: 0.08-0.2 mm/U
Materials group: N (primary application) | M (secondary application)
f min.: 0,08 mm/r
max. f: 0,2 mm/r
max. ap: 3 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN
Min./max. Vc in stainless steel: 120-200 m/min
Min./max. Vc in non-ferrous metals: 160-1000 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870325

EAN no.: 4050293080155

Product Datasheet
