Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: B
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Medium
Carbide type ISO: M10 | M30 | S10 | S30 | P15 | P25
Carbide type: HC7820

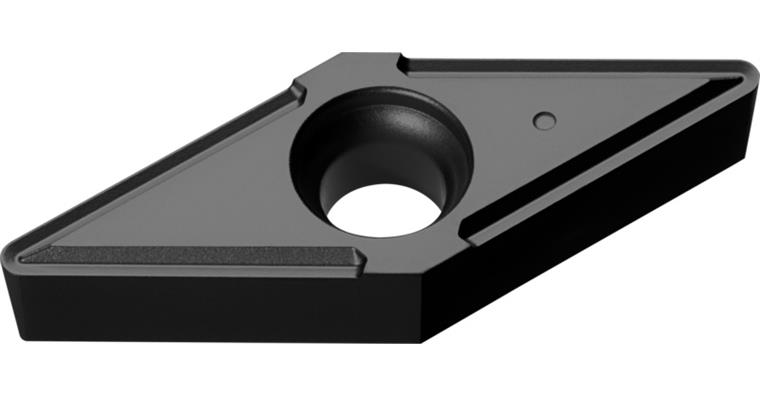

ISO-Code Rotating: VBMT 160404
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 0.3-2.0 mm
f min./max.: 0.08-0.20 mm/U
Materials group: S (primary application) | M (primary application) | P (primary application)
f min.: 0,08 mm/r
max. f: 0,20 mm/r
max. ap: 2,0 mm
min. ap: 0,3 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: SM
Min./max. Vc in steel: 60-130 m/min
Min./max. Vc in stainless steel: 120-200 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875240

EAN no.: 4066107006433
