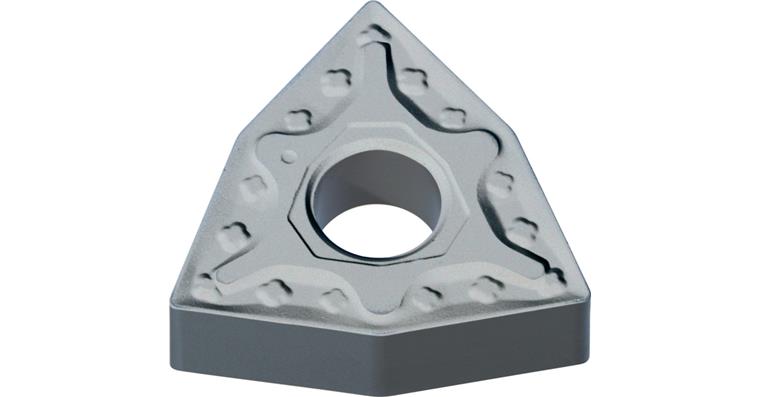

ATORN indexable insert, negative, WNMG 080408-MP HC7620

ATORN indexable insert, negative, WNMG 080408-MP HC7620

ATORN indexable insert, negative, WNMG 080408-MP HC7620
Item no: 1018620 214

Online price:

Available for immediate delivery

Application
For longitudinal turning and facing with a wide infeed range in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and toughness, for high process stability and a wide range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: WNMG 080408
Material to be processed: Steel | Cast metal
min./max. ap: 0.6-5 mm
f min./max.: 0.18-0.4 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,18 mm/r
max. f: 0,4 mm/r
max. ap: 5 mm
min. ap: 0,6 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP
Min./max. Vc in steel: 90-350 m/min
Min./max. Vc in cast iron: 120-290 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870673

EAN no.: 4050293352474

Product Datasheet
