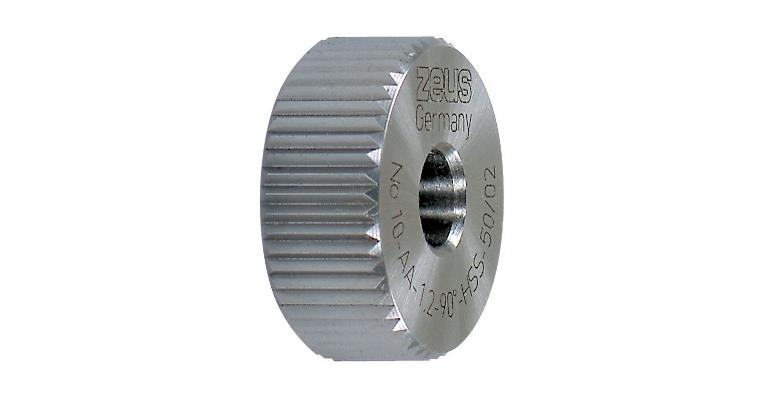

Knurling wheel DIN 403 PM type AA dia. x width x hole 20x8x6 mm pitch 0.6 mm

Knurling wheel DIN 403 PM type AA dia. x width x hole 20x8x6 mm pitch 0.6 mm

Knurling wheel DIN 403 PM type AA dia. x width x hole 20x8x6 mm pitch 0.6 mm
Item no: 1018970 208

Online price:

Still in stock: 2

Application
For chipless machining.
For knurling tools art. no. 1018965-1018967.

Execution
  • With 2 chamfers
  • Profile angle 90°
  • Finely milled teeth
  • Ground flat sides and hole


Brand: ZEUS-ECO
Form: AA
Partition: 0,6 mm
Partition inches: 42.3
Diameter: 20 mm
Width: 8 mm
Bore diameter (Bohrungs-Ø): 6 mm
Cutting material: HSSE-PM
DIN: 403
Knurling shape created on workpiece (DIN 82): RAA
Material to be processed: Steel | Stainless steel | Non-ferrous metal
Min./max. Vc in steel: 25-50 m/min
Min./max. Vc in stainless steel: 15-50 m/min
Min./max. Vc in non-ferrous metals: 25-90 m/min

Manufacturer part no.: AA2086-06

EAN no.: 4030741161209
