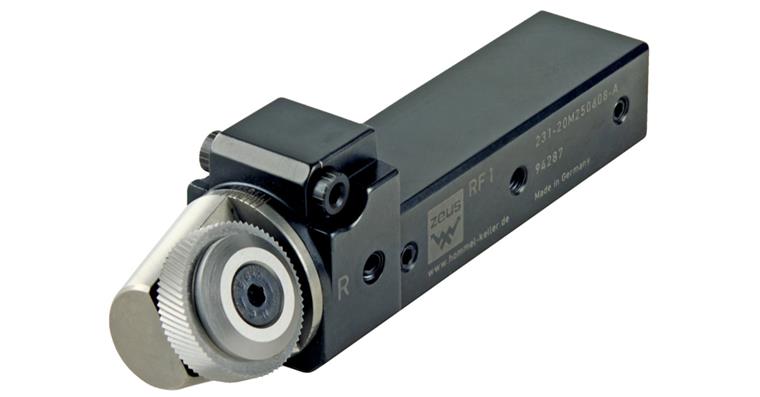

Knurling tool, sample RAA, RBL, RBR 30° 10-300 mm without knurling wheels

Knurling tool, sample RAA, RBL, RBR 30° 10-300 mm without knurling wheels

Knurling tool, sample RAA, RBL, RBR 30° 10-300 mm without knurling wheels
Item no: 1018977 101

Online price:

Available in 5-7 working days.

Application
For conventional and CNC lathes, turning/milling centres, multi-spindle machines and short/universal lathes.
Knurling patterns: RAA, RBL 30°, RBR 30°.
Knurl cutter:
1x shape BR 30° (for right-hand version)
1x shape BL 30° (for left-hand version)
1x shape AA RBL 30°/RBR 30°

Execution
  • Modular design: Knurling tool can be used universally as right and left-hand version
  • Quick changeover process: simply dismantle and rotate the knurling head
  • With positioning latching for optimum initial positioning
  • Fine adjustment of the knurling head via threaded spindle with scaling
  • Radial and axial rotation lock for optimum tool guidance on the workpiece and improved surface quality
  • Special surface hardening for increased wear resistance

Delivery
Delivered without knurl cutter (see art. no. 1018983-1018985).


Brand: ZEUS
For min./max. workpiece diameter (Für Werkstück-Ø min./max.): 10-300 mm
Shaft height (Schafthöhe a): 25 mm
Shank width (Schaftbreite b): 20 mm
Shaft length (Länge c): 129 mm
Width (Breite d): 33 mm
Length 2 (Länge e): 49 mm
Height (Höhe f): 36 mm
Suitable for knurling size: 25 x 8 x 6 mm
Knurling shape created on workpiece (DIN 82): RAA | RBR 30° | RBL 30°
Tool design: Right | Left

Manufacturer part no.: RW231-20M250608-B

EAN no.: 4030741639036

Product Datasheet
Keywords:

You might also be interested in this

  • VDE-Elektriker-Kreuzschlitz-Schlitz-Schraubendr. 3-Komponenten-Griff PZ 2x100 mm
  •
    ATORN twist drill N HSS, TiN head, DIN 338, 14.0 x 160 x 108 mm, 118°
  •
    ATORN NC reamer HSSE-TiN, T=6 D, 7-8°, 4.0mm H7 x 75mm x 19mm HA sim. to DIN 212
  •
    Flachsenker-Satz Typ KM-6 zyl. HSS M3 / M4 / M5 / M6 / M8 / M10 in Kassette
  •
    1/2 inch plug-in reversible ratchet 9x12 mm 30 teeth QuickRelease
  •
    ATORN gripper jaws internal hardened 1.5 mmx60° M14 hole spacing 30 mm
  •
    ATORN indexable insert SNMU 1206 ANER HC4535
  •

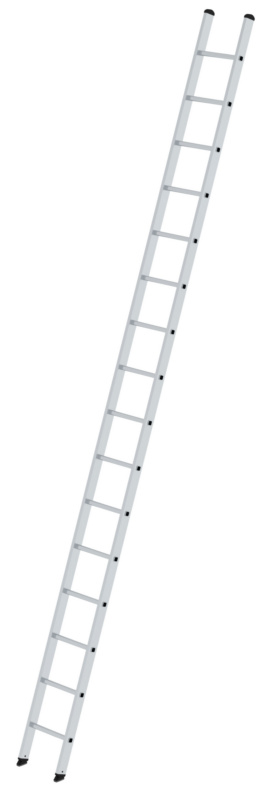

    Aluminium single ladder 16 rungs working height 5.80 m ladder length 4.70 m
  •
