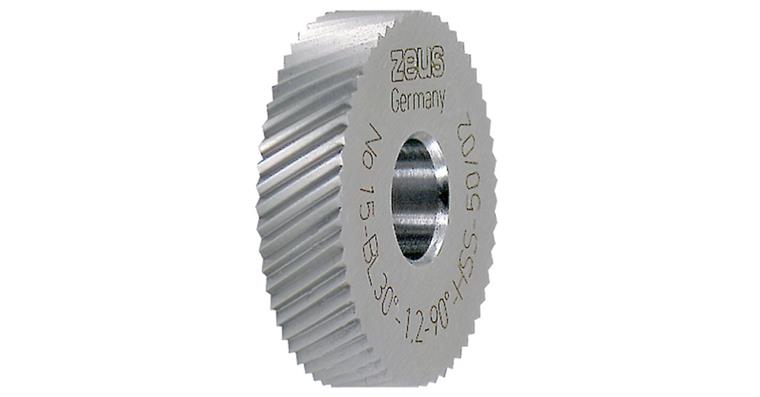

Knurling wheel DIN 403 PM type BL 30° dia. x width x hole 25x6x8 mm pitch 0.6 mm

Knurling wheel DIN 403 PM type BL 30° dia. x width x hole 25x6x8 mm pitch 0.6 mm

Knurling wheel DIN 403 PM type BL 30° dia. x width x hole 25x6x8 mm pitch 0.6 mm
Item no: 1018985 203

Online price:

Available in 5-7 working days.

Application
For machining.
For knurl cutting tool art. no. 1018977.

Execution
  • Without chamfer
  • Profile angle 90°
  • Finely milled teeth
  • Ground flat sides and hole


Brand: ZEUS
Form: BL 30°
Partition: 0,6 mm
Partition inches: 42.3
Knurling wheel diameter: 25 mm
Width: 6 mm
Bore diameter: 8 mm
Cutting material: HSSE-PM
DIN: 403
Surface: Uncoated
Machining direction: Neutral
Material to be processed: Universal use

Manufacturer part no.: BL2568-06-30

EAN no.: 4030741185748
