Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: M
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 08
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T

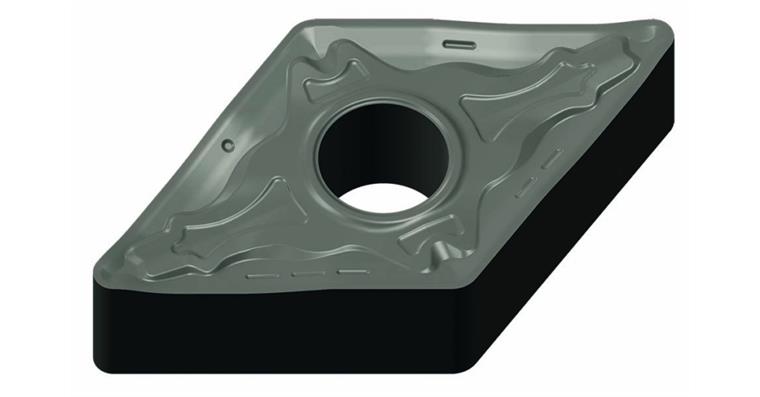

ISO-Code Rotating: DNMM 150608
Material to be processed: Steel | Cast metal
min./max. ap: 0.5-7.0 mm
f min./max.: 0.3-0.7 mm/U
Materials group: K (secondary application) | P (primary application)
f min.: 0,3 mm/r
max. f: 0,7 mm/r
max. ap: 7,0 mm
min. ap: 0,5 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP7
Min./max. Vc in steel: 180-400 m/min
Min./max. Vc in cast iron: 140-520 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370690

EAN no.: 4050293728453
