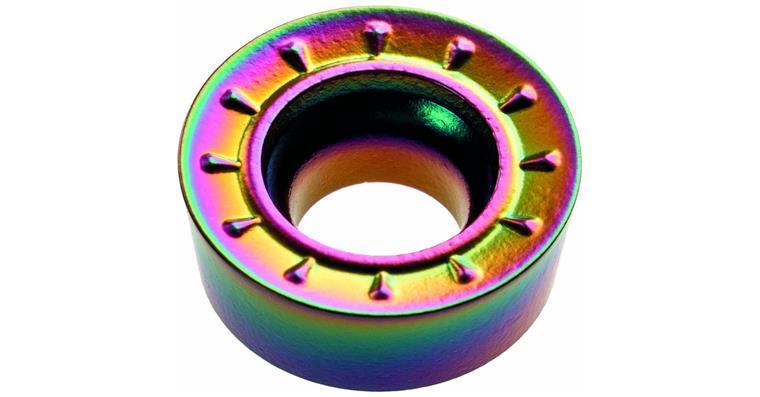

Brand: ATORN
Shape of indexable insert ISO: R
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: M0
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P35
Carbide type: ACP35T
ISO-Code Rotating: RCMT 1204M0
Material to be processed: Stainless steel | Steel
min./max. ap: 3.2-7.6 mm
f min./max.: 0.6-1.0 mm/U
Materials group: M (secondary application) | P (primary application)
f min.: 0,6 mm/r
max. f: 1,0 mm/r
max. ap: 7,6 mm
min. ap: 3,2 mm
Supply type: Medium finishing
Chip breaker code: MP5
Min./max. Vc in steel: 90-190 m/min
Min./max. Vc in stainless steel: 55-180 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370833

EAN no.: 4050293729887
