Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: S
Machining conditions for indexable insert: Good
Carbide type ISO: S10
Carbide type: APS10T

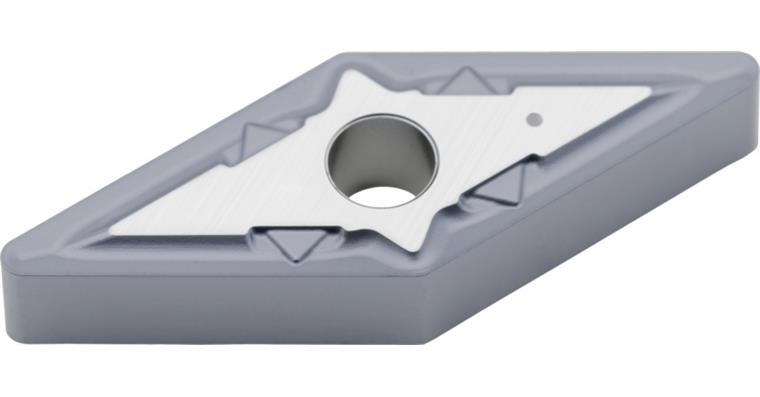

ISO-Code Rotating: VNMG 160408
Material to be processed: Special alloy | Stainless steel
min./max. ap: 0.25-3 mm
f min./max.: 0.08-0.3 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,08 mm/r
max. f: 0,3 mm/r
max. ap: 3 mm
min. ap: 0,25 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MS1
Min./max. Vc in stainless steel: 60-230 m/min
Min./max. Vc in special alloys: 30-120 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370104

EAN no.: 4050293565171
