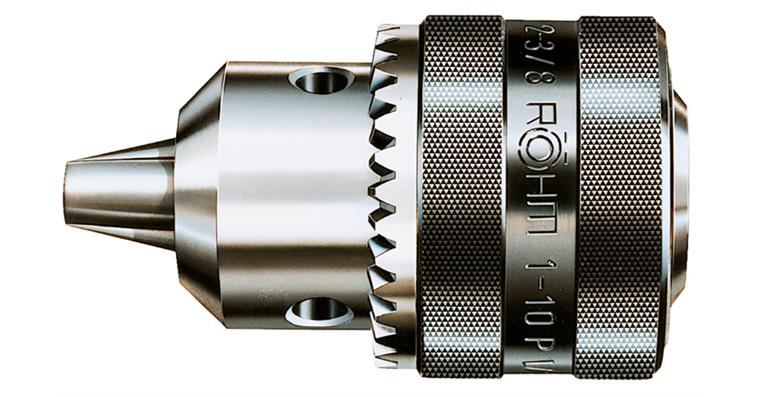

Toothed ring drill chuck DIN 6349 type Prima threaded chuck 1/2 Z x 20 0.8-10 mm

Toothed ring drill chuck DIN 6349 type Prima threaded chuck 1/2 Z x 20 0.8-10 mm

Toothed ring drill chuck DIN 6349 type Prima threaded chuck 1/2 Z x 20 0.8-10 mm
Item no: 1021112 109

Online price:

Available in 8-10 working days.

Application
For mounting tools with straight shanks.

Execution
  • Industrial version for hand-guided machines
  • Jaws, hardened
  • Body head with keyholes
  • Toothed ring drill chuck with key, DIN ISO 10887
  • High concentricity of up to 0.2 mm
  • Art. no. 1021112 104: Clockwise rotation
  • Art. nos. 1021112 107, 1021112 109 and 1021112 112: Clockwise/anti-clockwise rotation

Advantage
  • For day-to-day industrial applications
  • High clamping force thanks to toothed ring


Brand: RÖHM
Min./max. clamping width: 0.8-10.0 mm
Connection thread: 1/2 inch - 20 UNF 3B
Outer diameter: 34,5 mm
Length closed: 61 mm
DIN: 6349
Wrench type: S 2A

Manufacturer part no.: 317256115-70-12

EAN no.: 4019208078199

Product Datasheet
