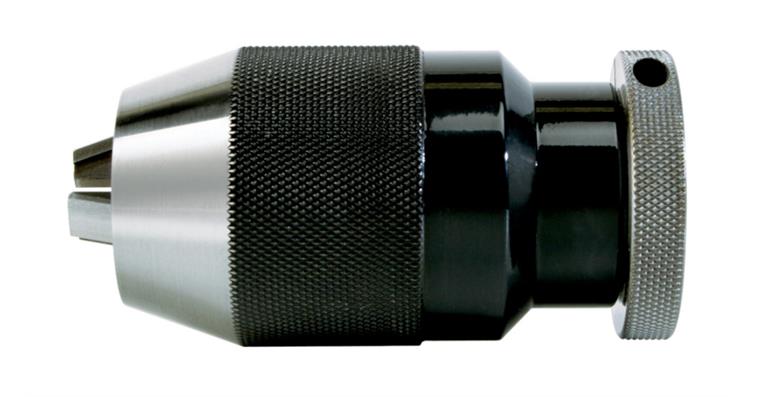

High-performance three-jaw drill chuck type SBF taper chuck B12 0-10 mm

High-performance three-jaw drill chuck type SBF taper chuck B12 0-10 mm

High-performance three-jaw drill chuck type SBF taper chuck B12 0-10 mm
Item no: 1021151 208

Online price:

Available in 6-8 working days.

Application
For clamping and releasing drilling tools quickly without a key.

Execution
  • For extended periods of use with maximum concentricity
  • All wear parts are case-hardened, ground and interchangeable
  • With internal taper chuck in accordance with DIN ISO 239

Advantage
100% concentricity check using different test pin diameters at various measuring points, based on DIN ISO 10888


Brand: ALBRECHT
Min./max. clamping width: 0.0-10.0 mm
Suitable for taper: B 12
Running direction: Clockwise rotation
With clamping force retainer: No
Length closed: 91,0 mm
Length, open: 80,0 mm
Housing length: 80,0 mm
Outer diameter (D): 43,0 mm

Manufacturer part no.: 02115110800

EAN no.: 4250261510527

Product Datasheet
