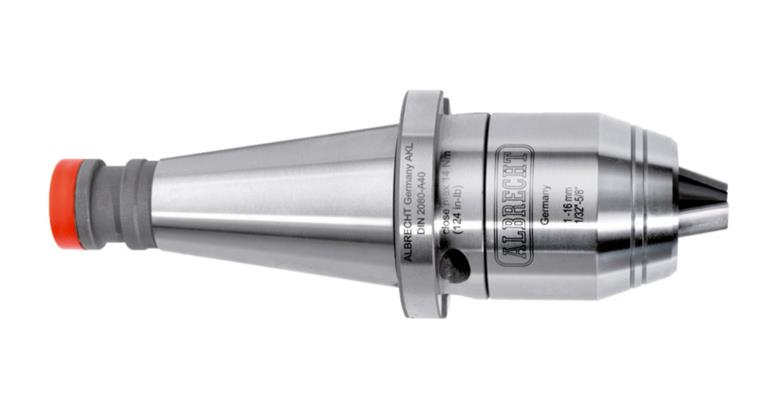

Short drill chuck AKL DIN 2080 SK 40 clamping range 1-16mm pre-balanced 7000 rpm

Short drill chuck AKL DIN 2080 SK 40 clamping range 1-16mm pre-balanced 7000 rpm

Short drill chuck AKL DIN 2080 SK 40 clamping range 1-16mm pre-balanced 7000 rpm
Item no: 1021184 301

Online price:

Still in stock: 2

Application
Suitable for clockwise and anti-clockwise rotation and fast-braking spindles.

Execution
  • 100% concentricity checked
  • Based on DIN ISO 10888
  • Worm gear for high retention forces

Delivery
Includes spanner with T-handle for high traction

Notes
Other balancing grades available on request.

Brand: ALBRECHT
Min./max. clamping width: 1.0-16.0 mm
Tool holding device: SK 40
Projecting length (A): 73,0 mm
Outer diameter (D): 50,0 mm
Form: A
Running direction: Clockwise/anti-clockwise rotation
DIN: 2080
Max. clamping width: 16,0 mm
Min. clamping width: 1,0 mm
Balancing quality: G 40 at 7,000 rpm
Construction length: Short
Coolant supply: External
Max. concentricity: 0,03 mm
Standard shank design: DIN 2080
Tightening thread: M16

Manufacturer part no.: 800 1160 140 0

EAN no.: 4250261589394

Product Datasheet
