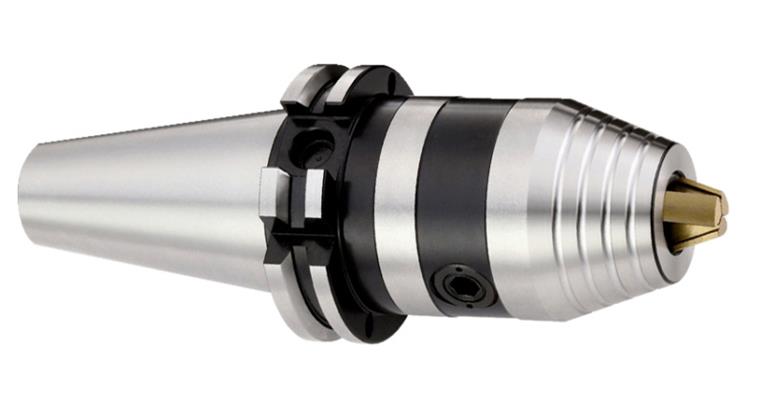

Precision short drill chuck DIN 69871 SK 40 clamp. range 2.5-16mm w/IKZ bal. 6.3

Precision short drill chuck DIN 69871 SK 40 clamp. range 2.5-16mm w/IKZ bal. 6.3

Precision short drill chuck DIN 69871 SK 40 clamp. range 2.5-16mm w/IKZ bal. 6.3
Item no: 1021200 203

Online price:

Available for immediate delivery

Application
For clockwise/anti-clockwise rotation.

Execution
  • Short design
  • Wear parts hardened and ground

Delivery
Includes spanner with T-handle for high traction.


Brand: HHW
Tool holding device: SK 40
Min./max. clamping width: 2.5-16.0 mm
Projecting length (A): 95,0 mm
Outer diameter (D2): 50,0 mm
Form: AD/AF
Concentricity tolerance: 0,035 mm
Coolant supply: Internal
Balancing quality: G 6.3 at 12,000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 AD/B
Tightening thread: M16

EAN no.: 4024496055456

Product Datasheet
