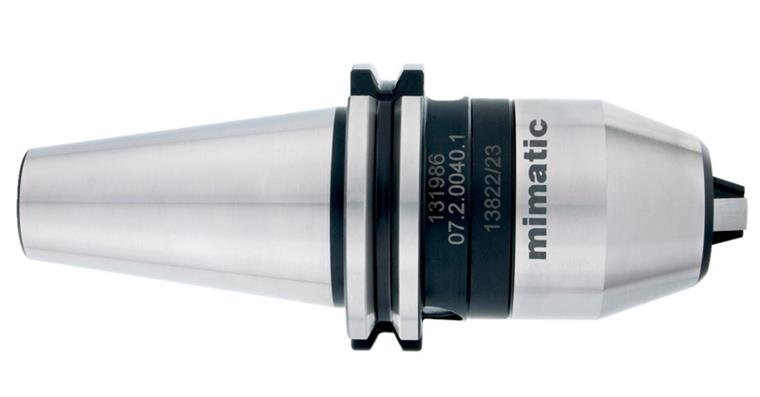

Precision three-jaw short chuck DIN 69871 A, SK40 clamping range 2.5-16 mm

Precision three-jaw short chuck DIN 69871 A, SK40 clamping range 2.5-16 mm

Precision three-jaw short chuck DIN 69871 A, SK40 clamping range 2.5-16 mm
Item no: 1021202 202

Online price:

Available in 5-7 working days.

Application
For BAZ and CNC lathes. Max. permissible rotation speed 10,000 rpm. For drilling, reaming, countersinking, thread cutting and finishing work.
Clockwise and anti-clockwise rotation.

Execution
Concentricity accuracy below 0.03 mm. High holding torque of 70-80 Nm. Rigid construction, high degree of safety. Clamping type: lateral with hexagon key AF 4. Extremely short design. High clamping forces thanks to worm gear!

Notes
Weighted short chuck with a rotation speed of up to 30,000 rpm deliverable on request.

Brand: MIMATIC
Tool holding device: SK 40
Min./max. clamping width: 2.5-16.0 mm
Projecting length (A): 80,0 mm
Outer diameter (D2): 51,0 mm
Form: A
Concentricity tolerance: 0,030 mm
Coolant supply: External
Balancing quality: G 6,3 at 10000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 A
Tightening thread: M16

Manufacturer part no.: 132015

Product Datasheet
