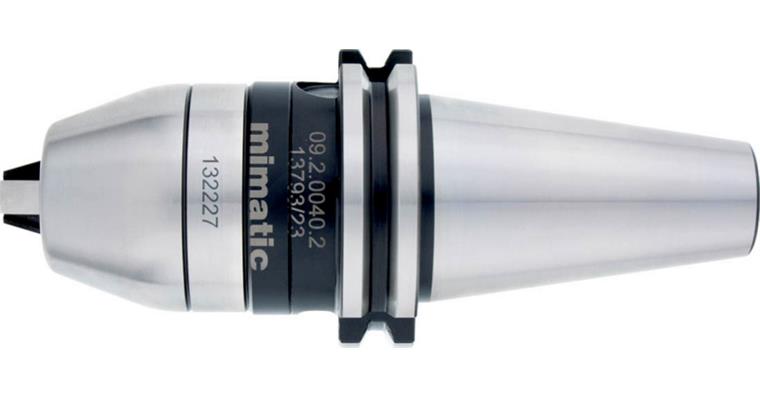

High-performance precision chuck Mimatic DIN 69871 A SK40 0.5-13 mm

High-performance precision chuck Mimatic DIN 69871 A SK40 0.5-13 mm

High-performance precision chuck Mimatic DIN 69871 A SK40 0.5-13 mm
Item no: 1021212 101

Online price:

Available in 5-7 working days.

Application
For drilling, reaming, milling, thread cutting.

Execution
Chuck and shank attached rigidly together. High clamping forces, type of clamping: Lateral with hexagon key. Max. permissible rotation speed 10,000 rpm. High concentricity less than 0.015 mm. High holding torque of 70-80 Nm. Extremely short design. High clamping forces thanks to worm gear!

Notes
All chucks come with operating instructions. Weighted short chuck with a rotation speed of up to 30,000 rpm deliverable on request.

Brand: MIMATIC
Tool holding device: SK 40
Min./max. clamping width: 0.5-13.0 mm
Projecting length (A): 80,0 mm
Outer diameter (D2): 49,5 mm
Form: A
Concentricity tolerance: 0,015 mm
Coolant supply: External
Balancing quality: G 6.3 at 12,000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 A
Tightening thread: M16

Manufacturer part no.: 132242

Product Datasheet
