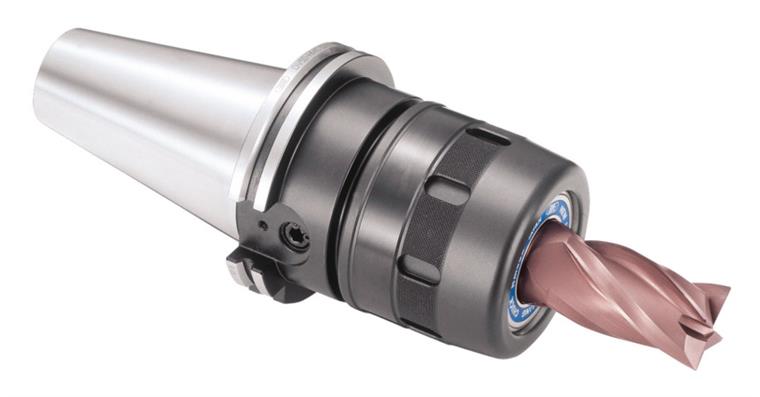

Power chuck DV40-HMC32S-105

Power chuck DV40-HMC32S-105

Power chuck DV40-HMC32S-105
Item no: 1021497 107

Online price:

Available in 4-6 working days.

Application
The high-performance power chuck combines high precision with high torque transmission and rigidity. Perfect for use in heavy
machining during milling, but also for drilling and fine drilling operations.

Execution
  • High clamping force thanks to special slotted design and needle bearing.
  • High rigidity for heavy machining
  • High levels of precision and concentricity 10ym at 4xD projecting length
  • Axial length adjustment of 6 mm with stop screw

Advantage
  • Various possible applications when used with reducing bushes ref. no. 1021497200-300
  • Perfect for heavy machining


Brand: BIG DAISHOWA
Tool holding device: SK 40
Clamping diameter (Ød): 32 mm
Projecting length (L): 105 mm
Outer diameter (ØD): 68 mm
Min./max. clamping depth (Spannbereich E1+ H): 60-89 mm
DIN: 69871-1
Construction length: Normal
Standard shank design: DIN 69871-1 A/AD

Manufacturer part no.: 806760
