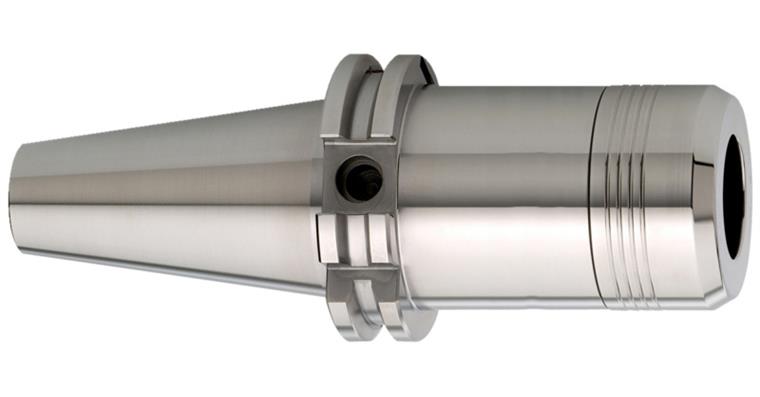

Precision collet chuck CENTRO P SK40 clamping range 2-20 mm A=160 mm

Precision collet chuck CENTRO P SK40 clamping range 2-20 mm A=160 mm

Precision collet chuck CENTRO P SK40 clamping range 2-20 mm A=160 mm
Item no: 1021507 115

Online price:

Available in 6-8 working days.

Application
For precision clamping of tools with straight shanks without any loss of concentricity or gripping force.

Execution
  • Long
  • Standard design
  • Ground external taper and internal cone
  • Concentricity and repeatability 0.003 mm (with GERC-HP collet chucks)
  • Supplied without clamping nut

Notes
Collet chucks with square drives for screw taps cannot be used.
For clamping nuts and spanners, see art. no. 1021509.
For sealing washers, see art. no. 1021513 (only available online).
GERC-HP/-HPD/-HPDD collet chucks, see art. no. 1021546-1021551 and 1021563-1021569.
For pull studs, see art. no. 1021733-1021740.

Brand: FAHRION
Tool holding device: SK 40
Size (Spannmutter Typ): CP 32
Collet type: 470E GERC32-HP
Min./max. clamping range: 2.0-20.0 mm
Outer diameter (D): 50,0 mm
Projecting length (A): 160,0 mm
Insertion depth (E): 135,0 mm
Coolant supply: Internal
Concentricity tolerance: 0,003 mm
Balancing quality: G 2.5 at 25,000 rpm
DIN: 69871-1
Construction length: Extra long
Standard shank design: DIN 69871-1 AD/B
Tightening thread: M16

Manufacturer part no.: CP32-AD40-A=160

EAN no.: 4054631059810
