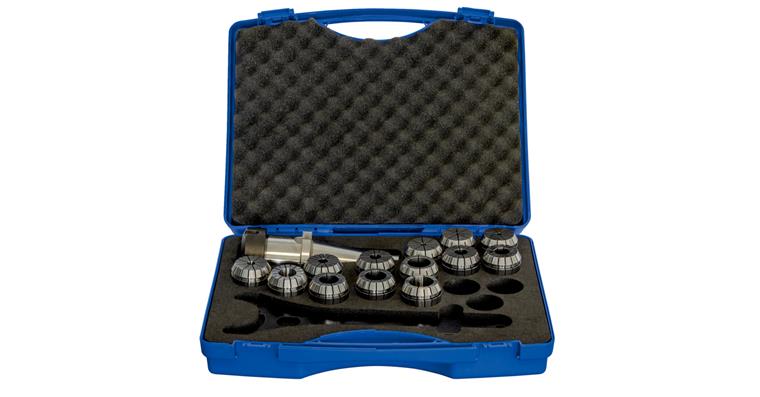

ER collet chuck set SK40 DIN 2080 15 pieces

ER collet chuck set SK40 DIN 2080 15 pieces

ER collet chuck set SK40 DIN 2080 15 pieces
Item no: 1021510 101

Online price:

Still in stock: 3

Application
For tools with straight shank.

Execution
  • Concentricity deviation between the taper and internal taper = 0.003 mm
  • Union nut, standard design
  • Collet chucks with double taper, slotted on both sides and extraction groove for easy release and replacement of the jaws
  • Taper angle tolerance according to AT 3
  • Case-hardening steel, functional surfaces hardened and ground

Delivery
- 1 mandrin à pinces, type ER 40, plage de serrage 3-26 mm
- 13 mandrins à pinces, type 472 E, fendus des deux côtés, diamètre 4/5/6/8/10/12/14/16/18/20/22/24/25 mm
- 1 clé de serrage
- 1 boîte en plastique


Brand: LIZZARD
Collet type: ER 40 (472 E)
Min./max. clamping range: 3.0-26.0 mm
DIN: 2080
Construction length: Short
Included in delivery: 1 Spannzangenfutter, Typ ER 40, Spannbereich 3-26 mm
13 Spannzangen, Typ 472 E, beidseitig geschlitzt, Ø 4 / 5 / 6 / 8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24 / 25 mm
1 Spannschlüssel
1 Kunststoffkasten
Max. concentricity: 0,003 mm
Standard shank design: DIN 2080
Tightening thread: M16
Tool holding device type: ER-Collet chuck

EAN no.: 4024496056200

Product Datasheet
