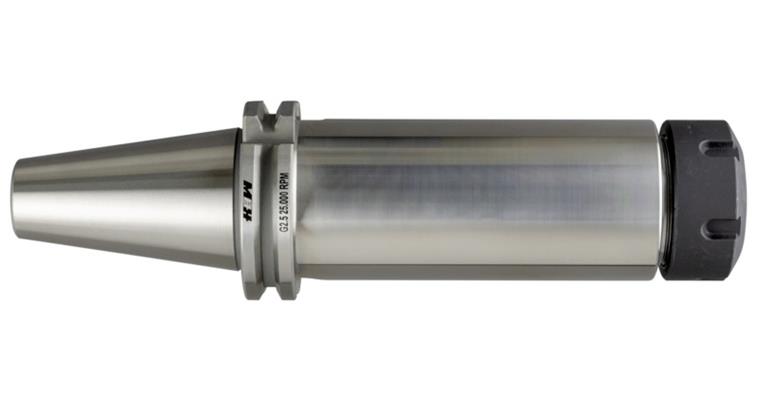

Collet chuck DIN 69871 ER16/426 E SK50 L fine thread G2.5 25,000 rpm with ICS

Collet chuck DIN 69871 ER16/426 E SK50 L fine thread G2.5 25,000 rpm with ICS

Collet chuck DIN 69871 ER16/426 E SK50 L fine thread G2.5 25,000 rpm with ICS
Item no: 1021512 211

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shanks in collet chucks, DIN 6499 shape A and B.

Execution
  • Precision design
  • Precision-balanced, G 2.5 - 25,000 rpm
  • Ground external taper and internal cone
  • Max. concentricity less than 0.005 mm
  • With hexagon nut

Notes
For collet chuck sets, see art. no. 1021519.
For collet chucks, see art. no. 1021520-1021525 and 1021534-1021539. For pull studs, see art. no. 1021733-1021740.
For spanners, see art. no. 1021532.

Brand: HHW
Tool holding device: SK 50
Collet type: ER 16 (426 E)
Min./max. clamping range: 1.0-10.0 mm
Projecting length (A): 160,0 mm
Outer diameter (D): 32,0 mm
Clamping nut type: ER 16
DIN: 69871-1
Construction length: Extra long
Standard shank design: DIN 69871-1 AD
Tightening thread: M24

EAN no.: 4024496056330
