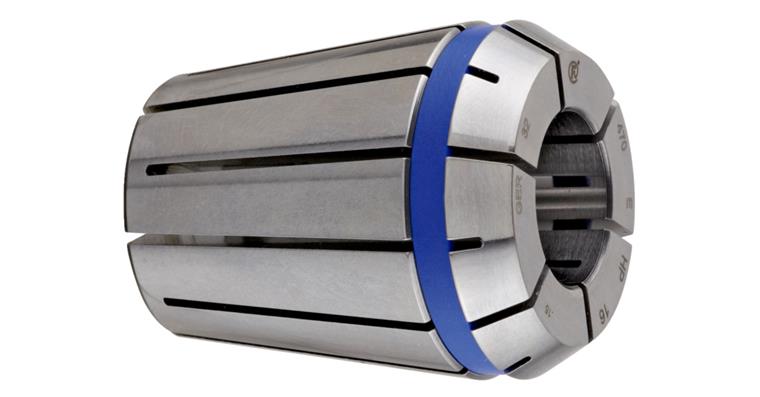

Precision collet chuck GERC 11-HP/4008 E hole 6.0 mm

Precision collet chuck GERC 11-HP/4008 E hole 6.0 mm

Precision collet chuck GERC 11-HP/4008 E hole 6.0 mm
Item no: 1021546 211

Online price:

Available in 6-8 working days.

Application
For CENTRO|P collet chucks and ATORN precision collet chucks.

Execution
  • Fully hardened and ground
  • Protect coating for longer-lasting precision and quality, concentricity 0.002 mm
  • System accuracy and repeatability in conjunction with CENTRO|P 0.003 mm
  • Without clamping bridge

Notes
For sealing washers, see art. no. 1021513 (only available online).
For plastic collet chuck boxes, see AQURADO storage system, art. no. 1084134.

Brand: FAHRION
Collet type: 4008E GERC11-HP
Clamping diameter (d): 6,0 mm
Outer diameter (D): 11,3 mm
Length (L): 18,0 mm
Coolant supply: External
Clamping bypass: -0,5 mm
DIN: 6499
Form: B
Max. concentricity: 0,002 mm

Manufacturer part no.: 4008E-HP6RD GER11-HP(FM4947-HP)

EAN no.: 4054631174315

Product Datasheet
