ATORN reducing sleeve dia. 32 mm/dia. 5 mm

ATORN reducing sleeve dia. 32 mm/dia. 5 mm

ATORN reducing sleeve dia. 32 mm/dia. 5 mm
Item no: 1021582 112

Online price:

Available in 4-6 working days.

Application
For reducing the clamping diameter. For drilling, reaming, milling and sharpening tools.

Execution
  • Suitable for all expansion chucks
  • Polished

Delivery
1x reducing sleeve for standard hydraulic expansion chucks

Notes
Caution: Never clamp without a tool - the reducing sleeve will be damaged.

Brand: ATORN
Chuck clamping diameter (Futter-Spanndurchmesser d1): 32 mm
Clamping diameter (Spanndurchmesser d): 5 mm
Collar diameter (Bunddurchmesser d2): 36 mm
Insertion depth (Einstecktiefe l2): 28 mm
Max. insert depth (Einsatztiefe l): 61 mm
Length (Länge L1): 63 mm
Concentricity tolerance: 0,003 mm
Coolant supply: No

ATORN-No.: 20803240

EAN no.: 4050293538090

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE TiN B 371 0° M3 0.5 mm ISO2 D 3xD CNC M
  •
    ATORN screw tap HSSE B 371 0° M3 0.5 mm ISO3 D 3xD CNC P
  •
    ATORN twist drill bit type UNI/VA HSSE-V3 TiAlN 5xD 15.5 x 16 mm x 120 mm
  •
    TX clamping screws for cat. no. 10649 ff, pack=5 pieces M 3.0 x 8, T 9
  •
    ATORN reducing sleeve 20mm d1= 3mm
  •
    ATORN reducing sleeve 20mm d1= 4mm
  •
    ATORN reducing sleeve 20mm d1= 6mm
  •
    ATORN reducing sleeve 32mm d1= 8mm
  •
    ATORN 2-piece measuring instrument set, wooden case, digital vernier callipers
  •
    ATORN 6-piece measuring instrument set, wooden case, digital vernier callipers
  •
    Universal knife with 6 snap-off blades blade width 18 mm
  •

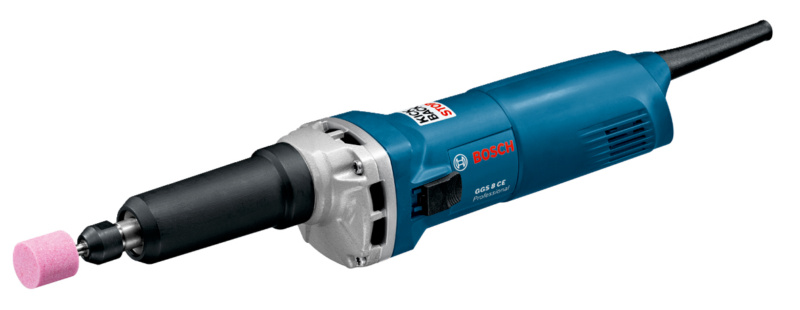

    GGS 8 CE electric straight grinder 750 watts rotation speed 2,500-8,000 rpm
