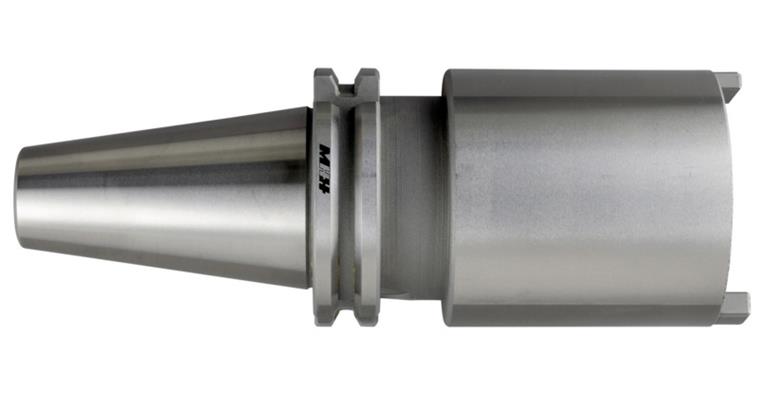

Spacer sleeve DIN 69871 A external cone SK40 internal cone SK40

Spacer sleeve DIN 69871 A external cone SK40 internal cone SK40

Spacer sleeve DIN 69871 A external cone SK40 internal cone SK40
Item no: 1021618 202

Online price:

Available in 8-10 working days.

Application
For tools with steep taper shank. Case-hardening steel, functional surfaces hardened and ground. Taper angle tolerance in accordance with AT 3. Concentricity deviation between the taper and internal cone <= 0.008 mm

Execution
  • Steep taper with inner clamping thread, trapezoidal groove and built-in screw. Outer taper DIN 69871 A, internal cone DIN 69871 A and MAS-403-BT
  • External mounting mandrel
  • In accordance with DIN 2080 A, DIN 69871 A, MAS 403-BT internal SK, in accordance with DIN 69871 A, MAS 403-BT


Brand: HHW
Projecting length (A): 100,0 mm
Outer diameter (D): 63,0 mm
Tool holding device: SK 40
Concentricity tolerance: 0,008 mm
Construction length: Short
Coolant supply: External
Standard shank design: DIN 69871-1 A
Taper type (auf SK): SK40
Tightening thread (Anzugsgewinde innen): M16

EAN no.: 4024496060436

Product Datasheet
