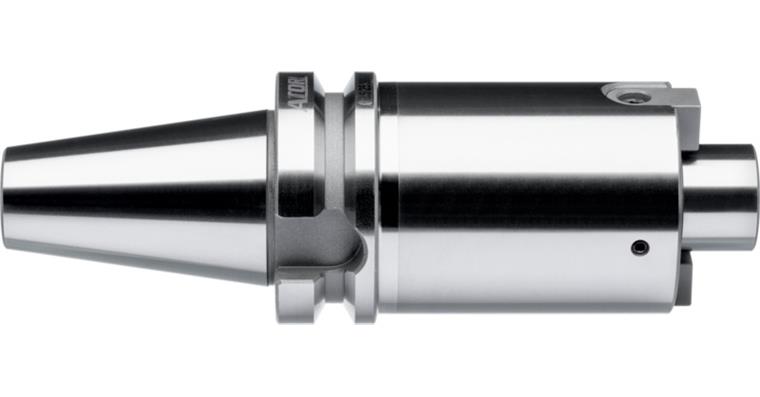

ATORN transverse drive shell end mill arbour BT40 (ISO 7388-2) dia. 32mm A=130mm

ATORN transverse drive shell end mill arbour BT40 (ISO 7388-2) dia. 32mm A=130mm

ATORN transverse drive shell end mill arbour BT40 (ISO 7388-2) dia. 32mm A=130mm
Item no: 1021653 314

Online price:

Available in 8-10 working days.

Application
For accommodating shell end mills and angular milling cutters with longitudinal groove in accordance with DIN 842.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Delivery
1x BT40 transverse drive shell end mill arbour (ISO 7388-2); with retaining screw

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Form: JD
Tool holding device: BT 40
Mandrel diameter (d): 32 mm
Tap length (L): 24 mm
Projecting length (A): 130 mm
Outer diameter (D): 78 mm
Length (L): 24 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22660849

EAN no.: 4050293712643

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN RockTec PRO end mill, long 12x16x52x100 mm T=4 HA
    126,72 €
  • ATORN HSK63 shrink-fit chuck (ISO 12164) dia. 32 mm A=120 mm
    410,62 €
  • ATORN SK40 surface chuck (ISO 7388-1), dia. 18 mm, A=130 mm
    56,07 €
  • ATORN SK50 surface chuck (ISO 7388-1), dia. 8 mm, A=100 mm
    71,20 €
  • ATORN SK50 surface chuck (ISO 7388-1), dia. 8 mm, A=200 mm
    174,44 €
  • ATORN SK50 surface chuck (ISO 7388-1), dia. 40 mm, A=200 mm
    174,44 €
  • ATORN combination shell end mill arbour BT40 (ISO 7388-2) dia. 27 mm A=160 mm
    97,90 €
  • ATORN transverse drive shell end mill arbour BT40 (ISO 7388-2) dia. 22mm A=40mm
    56,07 €
  • ATORN transverse drive shell end mill arbour BT40 (ISO 7388-2) dia. 27mm A=130mm
    81,88 €
  • ATORN transverse drive shell end mill arbour SK40 (ISO 7388-1) dia. 40mm A=130mm
    101,46 €
  • ATORN transverse drive shell end mill arbour SK50 (ISO 7388-1) dia. 16mm A=130mm
    103,24 €

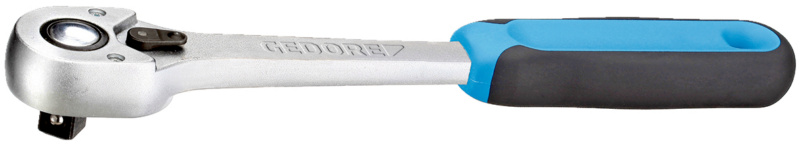

  • 3/8 inch lever reversible ratchet DIN 3122 31CrV3 length 200 mm push button
