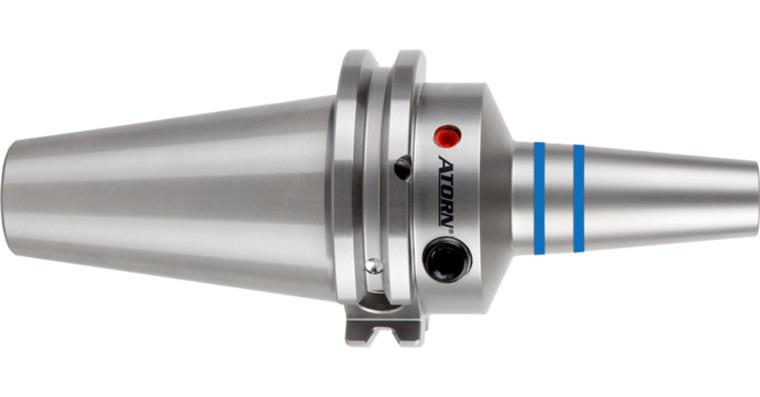

ATORN hydraulic expansion chuck ultra-slim SK40 dia. 6 mm A=120 mm

ATORN hydraulic expansion chuck ultra-slim SK40 dia. 6 mm A=120 mm

ATORN hydraulic expansion chuck ultra-slim SK40 dia. 6 mm A=120 mm
Item no: 1021710 101

Online price:

Still in stock: 7

Application
Produced using an innovative process, the ultra-slim hydro expansion chuck combines the advantages of an expansion chuck and a shrink-fit chuck in a single product.

Execution
  • Extremely high clamping forces
  • Extremely high temperature resistance (up to 120 °C) ensures that the chuck retains its accuracy
  • Slim shrink-fit chuck-style design makes it suitable for narrow interference contours
  • Excellent damping properties
  • Max. concentricity < 0.003 mm
  • Standard tool changes as with expansion chucks without requiring additional devices
  • Reducer bushings enable various applications
  • Balanced to G2.5/25,000 rpm
  • With Balluff chip hole

Delivery
1x ultra-slim SK30 or SK40 hydraulic expansion chuck (ISO 7388-1)

Notes
The previous standard DIN 69871-1 was replaced by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Clamping diameter (d): 6 mm
Projecting length (A): 120 mm
Form: AD/AF
Outer diameter (D): 49,5 mm
Tapered diameter (d2): 12 mm
Diameter (d3): 20,4 mm
Clearance length to collar (l1): 80 mm
Clamp in depth (l2): 37 mm
Max. adjustment travel (max. V): 10 mm
Coolant supply: Internal
Suitable for thread (G): M5
Width across flats: 2.5 mm
Balancing quality: G 2.5 at 25,000 rpm
Concentricity tolerance: 0,003 mm

ATORN-No.: 21044401

EAN no.: 4050293382600

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap, HSSE, vaporised, 0°, shape B, MF20x1.0 6H
  •
    ATORN SC mini torus mill cttr TiAlSiN 2.5x2.5x50 mm clearance 2.41x10mm R 0.3
  •
    Ins. holder L 207.2020.2-D for groov. ins. DED.02.. Cat. no. 18768-18770
  •
    ATORN hydraulic expansion chuck ultra-slim SK40 dia. 8 mm A=120 mm
  •
    ATORN hydraulic expansion chuck ultra-slim SK40 dia. 8 mm A=160 mm
  •
    ATORN hydraulic expansion chuck ultra-slim SK40 dia. 8 mm A=200 mm
    755,58 €
  • Length measuring bench Precimar SM 60 25-60 mm MR 0-25 mm
  •
    LIZZARD Schlosserhammer DIN 1041 Hickorystiel 1000 Gramm
  •
    Reverse deburring tool, swivelling HSS blade BC2200 for dia. 10-22 mm
  •
    Number punch set 0–9 Extra DIN 1451 narrow, font height 8 mm
    31,42 €

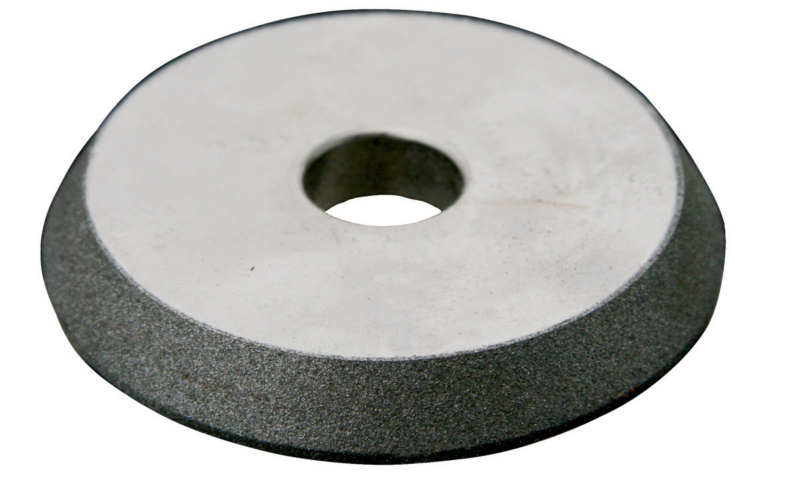

  • CBN sanding disc GH15T K170-K200 for HSS
  •
