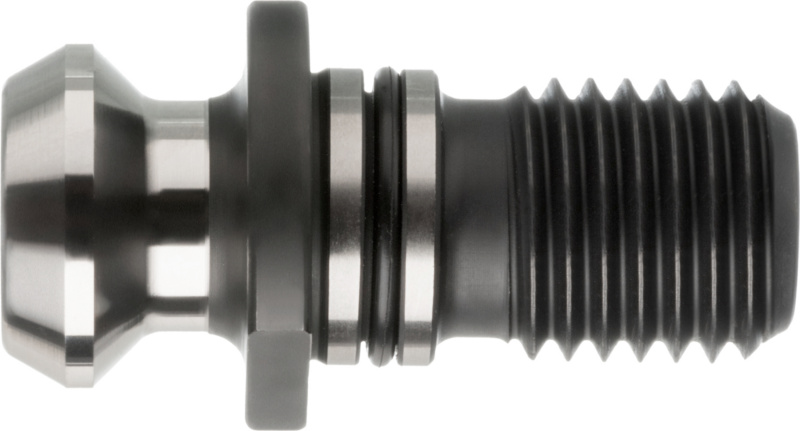

ATORN pull stud ISO 7388-2 SK50 without hole

ATORN pull stud ISO 7388-2 SK50 without hole

ATORN pull stud ISO 7388-2 SK50 without hole
Item no: 1021735 202

Online price:

Available for immediate delivery

Application
For tools with steep taper in accordance with ISO 7388-1 (former standard was DIN 69871) and ISO 7388-2 (old standard was JIS B 6339 MAS-BT).

Execution
  • All pull studs made from material 16Mn Cr5
  • Case-hardened HRc 58 ± 2
  • Thread and bore hole soft, black oxide and polished
  • Pull studs with O-ring = sealed

Delivery
1x SK pull stud ISO 7388-2

Notes
Further versions available on request (specification of machine types required).

Brand: ATORN
ISO: 7388-2 B
Suitable for tool holding device: SK 50
Form: B
Outer diameter (D1): 29,1 mm
Bolt diameter (D2): 19,6 mm
Diameter (D): 25 mm
Suitable for screw thread (d5): M24
Length (L): 65,5 mm
Coolant supply: No
Length of tenon (L1): 25,55 mm

ATORN-No.: 20800009

EAN no.: 4050293200683
