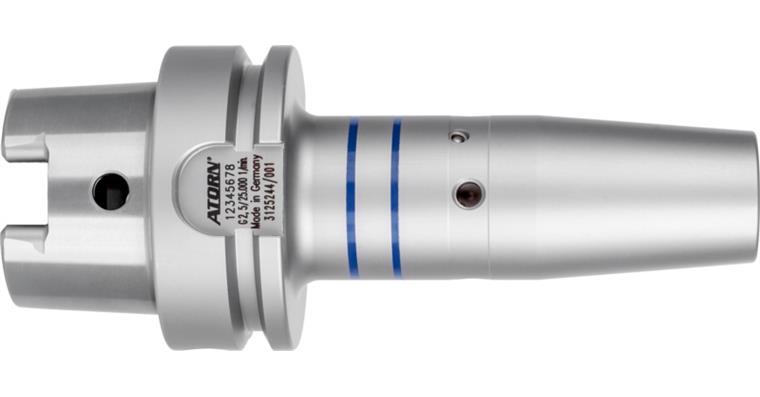

ATORN shrink-fit chuck HSK63 (ISO 12164) KKB diameter 25 mm A=120 mm

ATORN shrink-fit chuck HSK63 (ISO 12164) KKB diameter 25 mm A=120 mm

ATORN shrink-fit chuck HSK63 (ISO 12164) KKB diameter 25 mm A=120 mm
Item no: 1021803 509

Online price:

Available in 5-7 working days.

Application
For clamping cutters and drills with straight shanks in h6 tolerance. Suitable for shrinking onto inductive contact and hot air devices.

Execution
  • Guarantees maximum concentricity of 0.003 mm
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • Adjustment travel 10 mm, can be adjusted on both sides
  • 4 additional drill holes for fine balancing
  • With Balluff chip hole
  • Resealable coolant bores
  • Geometry significantly improves damping behaviour

Advantage
  • High transmittable torques
  • High chip removal rate, perfect for HSC machining
  • Protects the spindle and machine
  • Ideal for high rotation speeds
  • Improved surface quality

Delivery
1x HSK63 shrink-fit chuck (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Clamping diameter (d): 25 mm
Projecting length (A): 120 mm
Tapered diameter (d2): 44 mm
Diameter (d3): 53 mm
Clamp in depth (l2): 58 mm
Suitable for thread ( G): M16 x 1
Max. adjustment travel (V): 10 mm
Concentricity tolerance: 0,003 mm
Coolant supply: KKB
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044886

EAN no.: 4050293415179

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap set 3 pieces DIN 352 HSS-E M2.5
    84,38 €
  • ATORN SC mini radius cutter TiAlSiN 0.4x0.32x50 mm clearance 0.37x1 mm
  •
    ATORN solid carbide roughing cutter Z3 HA shaft diameter 6.0 x 14 x 57mm with IC
  •
    ATORN end mill, length 62 mm, shaft diameter 6 mm, cutting diameter 6 mm
  •
    ATORN end mill, length 93 mm, shank 12 mm, cutting edge diameter 12 mm
  •
    Shrink-fit chuck slim DIN 69893 shape A HSK63 extra-long dia. 3x130mm st. steel
  •

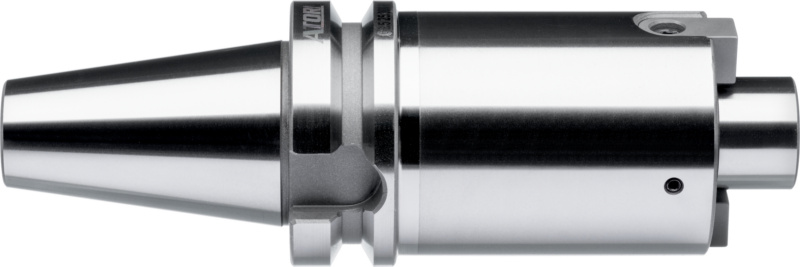

    ATORN transverse drive shell end mill arbour BT40 (ISO 7388-2) dia. 32mm A=130mm
  •
