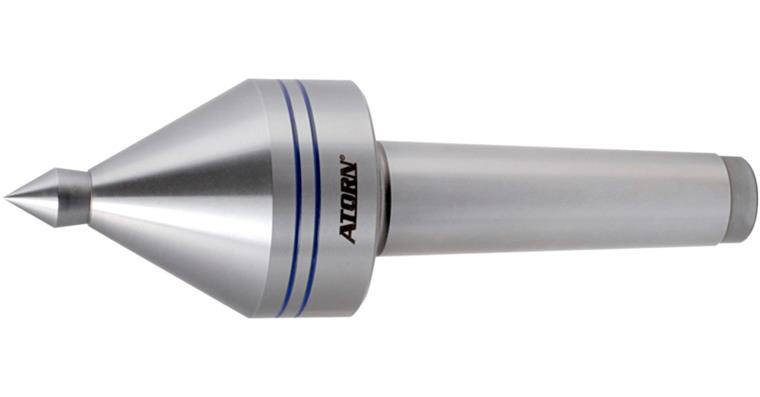

ATORN revolving centring point 60° MK3 with reinforced moving point

ATORN revolving centring point 60° MK3 with reinforced moving point

ATORN revolving centring point 60° MK3 with reinforced moving point
Item no: 1024203 203

Online price:

Available in 6-8 working days.

Application
Perfect all-purpose point for universal use on manual lathes. Particularly suitable for copy turning. The extended moving point makes it easy to move the lathe tool up to the flat side of the workpiece.

Execution
  • Tool fully hardened and polished
  • Bearings positioned to accommodate high axial forces
  • Max. concentricity tolerance 0.005 mm

Advantage
Radial shaft seal prevents the ingress of dirt and coolant

Delivery
1x synchronously running centring point


Brand: ATORN
Morse taper size: MK 3
Programming size (Programmiermaß A): 64 mm
Programming size for housing (Programmiermaß Gehäuse B): 78 mm
Max. workpiece weight: 330 kg
Max. rotation speed: 4200 rpm
Concentricity tolerance: 0,005 mm
Diameter of housing (Durchmesser Gehäuse D): 64 mm
Tip diameter (Spitzendurchmesser C): 16 mm

ATORN-No.: 21950003

EAN no.: 4050293272505

Product Datasheet
